Auxiliary radiator

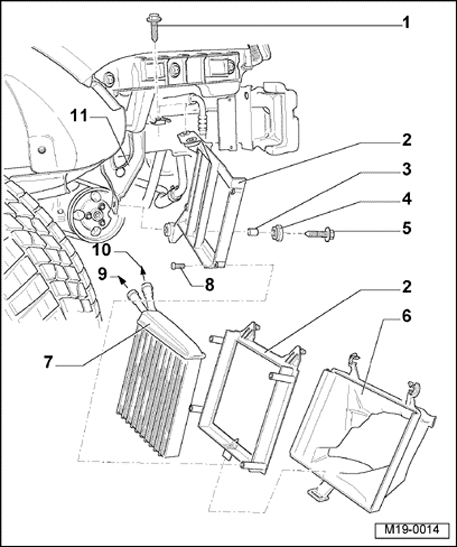

Fig 1: Exploded View Of Auxiliary Radiator

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 10 Nm

2 - Retaining frame

• For auxiliary radiator

3 - Spacer sleeve

4 - Rubber disk

5 - Lower bolt, 10 Nm

6 - Air scoop

• Clip into retaining frame

7 - Auxiliary radiator

• For vehicles in hot climates
• Removing and installing, refer to Radiator, removing and installing
• After replacement, refill completely with fresh coolant

8 - 5 Nm

9 - To Y-branch of upper coolant hose

• Coolant hoses, connection diagram, refer to Coolant hoses, connection diagram

10 - To Y-branch of lower coolant hose

• Coolant hoses, connection diagram, refer to Coolant hoses, connection diagram

11 - Bracket

• For auxiliary radiator
