Valve stem seals, replacing: Notes

(Cylinder head installed)

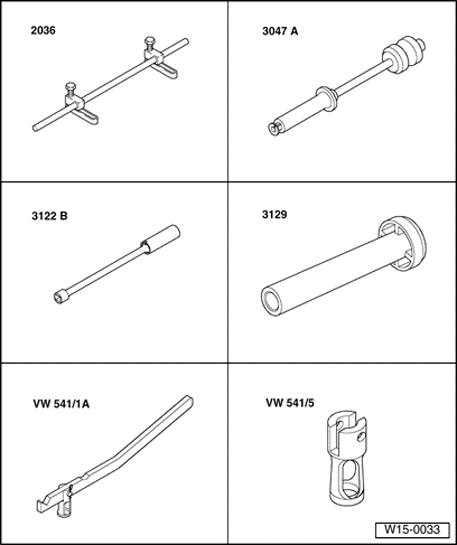

Fig 1: Identifying Special Tools - Valve Stem Seals, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Valve assembly device 2036
• Puller 3047 A
• Spark plug socket and extension 3122 B
• Fitting tool 3129

• Valve lever VW 541/1 A
• Press tool VW 541/5

Special tools, testers and auxiliary items required

Fig 2: Flexible Pressure Tubing VW 653/3

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Flexible pressure tubing VW 653/3
