Cylinder head, removing and installing: Notes

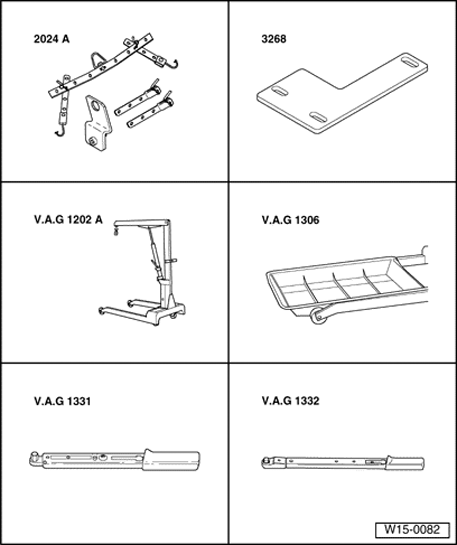

Fig 1: Identifying Special Tools - Cylinder Head, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Engine sling 2024A
• Camshaft ruler 3268
• Shop crane VAG 1202A
• Drip pan VAG 1306 for Shop crane VAG 1202A

• Torque wrench (5-50 Nm) or equivalent VAG 1331
• Torque wrench (40-200 Nm) or equivalent VAG 1332

Special tools, testers and auxiliary items required

Fig 2: Hose Clip Pliers V.A.G 1921

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Spring band clamp pliers VAG 1921
