Installing "V" ribbed belt

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Before installing the "V" ribbed belt, make sure that all the assemblies (Generator, air conditioning compressor, power steering pump) are tightly mounted.
  • When installing the "V" ribbed belt, note the direction of travel and make sure the belt is correctly seated in the belt pulleys.

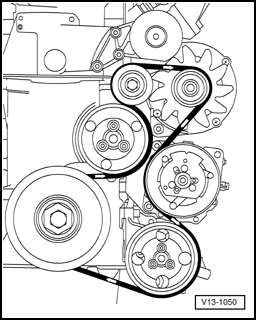

Fig 1: "V" Ribbed Belt Routing
GW00000808Courtesy of VOLKSWAGEN UNITED STATES, INC.

After work is completed, always:
