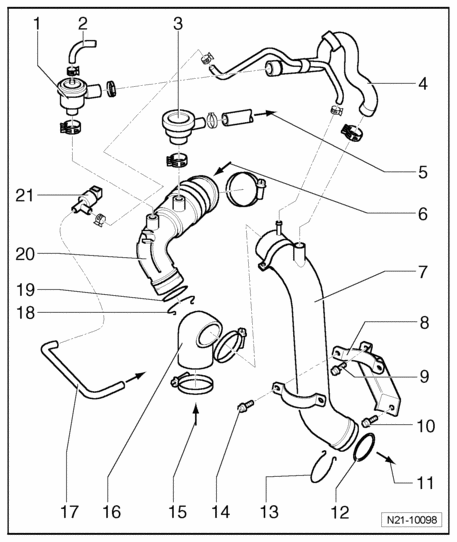

Part II

1 - Deceleration shut-off valve

• Checking refer to Deceleration shut-off valve, checking

2 - Connecting hose

• To Recirculating valve for turbocharger N249 ^*/**

3 - Pressure regulator valve

• For crankcase ventilation

4 - Connecting hose

• From deceleration shut-off valve to upper air guide pipe

5 - To crankcase housing ventilation

6 - From air filter

7 - Upper air guide pipe

• Note installation position of heat shield mat
• Vehicles with engine code AWP, AWW with quick-release connection (with O-ring and retaining clip)
• Vehicles with engine code AWD with screw-type clamps

8 - Bracket

9 - 40 Nm

10 - 25 Nm

11 - To connection hose for lower connection sleeve/charge air cooler

12 - O-ring

• Replace
• Only vehicles with engine code AWP, AWW

13 - Retaining clip

• Check for secure seat
• Only vehicles with engine code AWP, AWW

14 - 10 Nm

15 - From turbocharger exhaust connection

16 - Connecting hose

17 - Connecting hose

• To vacuum diaphragm for boost pressure regulator valve

18 - Retaining clip

• Check for secure seat

19 - O-ring

• Replace

20 - Intake tube

• To intake tube of turbocharger

21 - Wastegate Bypass Regulator Valve N75 ^*/**

• Valve is activated (pulsed) by engine control module
• Check activation.
