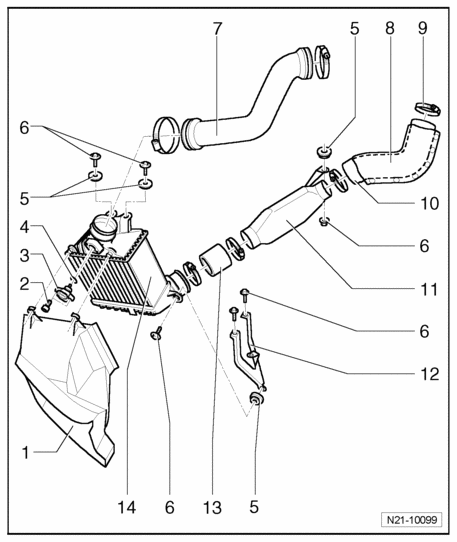

Charge air cooler components, assembly overview
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Various hose connections are secured with clamps.
- Charge air system must be properly sealed.
- When installing, follow installation marks on hoses and components.
- Note installation position of heat shield mats
1 - Air duct
2 - 10 Nm
3 - Charge Air Pressure Sensor G31
- Checking refer to Charge Air Pressure Sensor G31 , checking
4 - O-ring
- Replace
5 - Rubber grommet
- With sleeve
6 - 10 Nm
7 - Intake tube
- Between intake manifold and charge air cooler
8 - Heat shield mats
- Note installation position
9 - Screw clamp
- Only vehicles with engine code AWD
- Vehicles with engine code AWP, AWW with quick-release connection (with O-ring and retaining clip)
10 - Connecting hose
11 - Air guide pipe
12 - Bracket
13 - Connecting hose
14 - Air charge cooler
