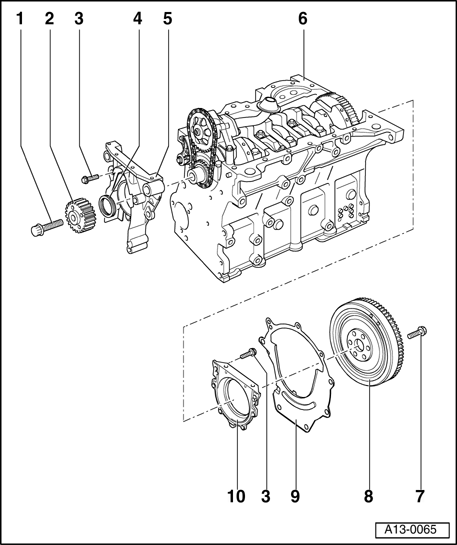

Sealing flanges and flywheel/drive plate, assembly overview

1 - 90 Nm plus an additional ¹ / ₄ turn (90 ° )

• Replace
• Use counter-holder 3415 to loosen and tighten
• Threads and shoulder must be free of oil and grease

2 - Crankshaft toothed belt sprocket

3 - 15 Nm

4 - Seal

• Replacing, refer to Crankshaft seal - ribbed belt side, replacing  .

5 - Sealing flange

• Must be located on alignment sleeves
• Clean sealing surface before installing
• Insert with silicone sealant D 176 404 A2
• Removing and installing refer to Sealing flange (belt pulley side), removing and installing

• To remove and install, remove oil pan

6 - Cylinder block

• Removing and installing crankshaft refer to Crankshaft
• Piston and connecting rod, disassembling and assembling, refer to Piston and connecting rod

7 - 60 Nm plus an additional ¹ / ₄ turn (90 ° )

• Replace

8 - Flywheel/drive plate

• To remove and install flywheel, secure using flywheel retainer 3067
• Drive plate, removing and installing refer to Drive plate, removing and installing

9 - Intermediate plate

• Must be located on alignment sleeves
• Do not damage or bend when doing assembly work

10 - Sealing flange with seal

• Only replaced as complete unit
• To remove and install, remove oil pan, refer to Oil pan, removing and installing
• Before installing, remove oil remains from crankshaft journal with a clean cloth
• Do not additionally oil or grease sealing lip of sealing ring

• To install, use provided support sleeve
• Support sleeve may only be removed after sealing flange has been slid onto crankshaft pin.
