Vehicles with adjustable throttle position sensor

Vehicles with non-adjustable throttle position sensor

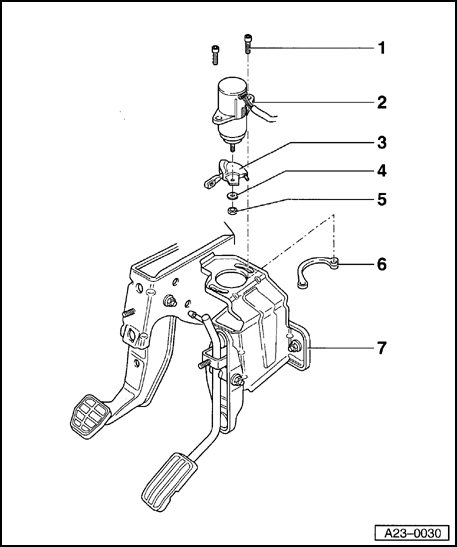

Fig 1: Exploded View Of Accelerator Pedal Mechanism - Vehicles With Adjustable Throttle Position Sensor

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 10 Nm

2 - Throttle position (TP) sensor G79

• Checking. Refer to Throttle position (TP) sensor, checking
• Adjusting. Refer to Adjusting Throttle Position (TP) sensor
• To remove, remove instrument panel and pedal assembly cover.

3 - Cable pulley

4 - Spring washer

5 - 10 Nm

6 - Thread catch

7 - Bracket

• Removing and installing: Refer to 46 BRAKES - MECHANICAL COMPONENTS
