Toothed belt, removing, installing and tensioning: Notes

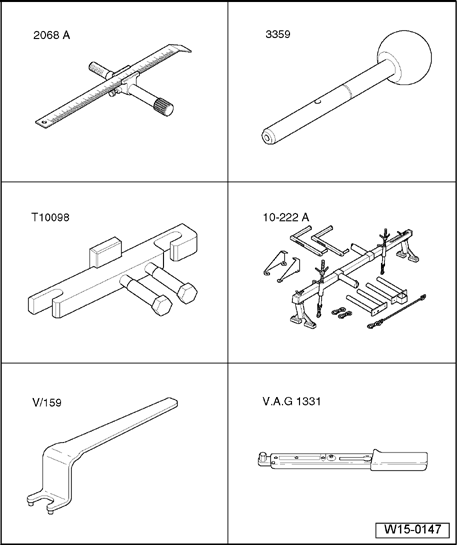

Fig 1: Identifying Special Tools - Toothed belt, Removing, Installing And Tensioning

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Adjustment gauge for TDC 2068 A
• Rig pin 3359
• Camshaft bar T10098
• Engine support bridge 10-222A with feet 10-222A/1

• Pin wrench V159 (for engines with engine code AHF)
• Counter-holder tool 3036

Fig 2: Identifying Puller T40001

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Puller T40001
