Front exhaust pipe and catalytic converter with attachments, assembly overview

WARNING: This page is about a different car, the 2006 Volkswagen Golf, 2005 Volkswagen Jetta, 2005 Volkswagen Golf, 2004 Volkswagen Jetta, and 2004 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

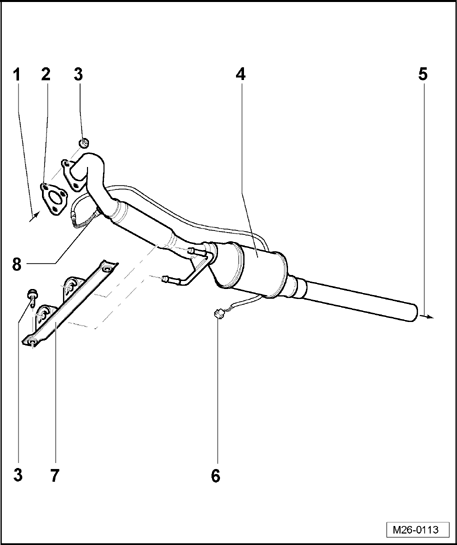

Fig 1: View Of Front Exhaust Components
GW00000412Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - From turbocharger

2 - Seal

3 - 25 Nm

4 - Front exhaust pipe with catalytic converter

5 - To muffler

6 - Connector for mass air flow sensor -T6c-

7 - Mounting

8 - Heated Oxygen Sensor (HO2S) -G39-
