VR5 and VR6 with/without air conditioner

NOTE: The following list refers to items in Fig 1.
  1. Power steering pump
  2. Intake hose
  3. Pressure line
  4. Pressure switch
    • Switches at 40 bar
    • Tighten to 15 N.m (11 ft. lb)
  5. O-ring
    • Always replace
  6. Banjo bolt, 38 N.m (28 ft. lb)
  7. O-ring
    • Always replace
  8. Colored marks on intake hose

    White or yellow ring must seat within retainer, see Item - 9 -.

  9. Bracket
  10. Hex nut
  11. Bracket

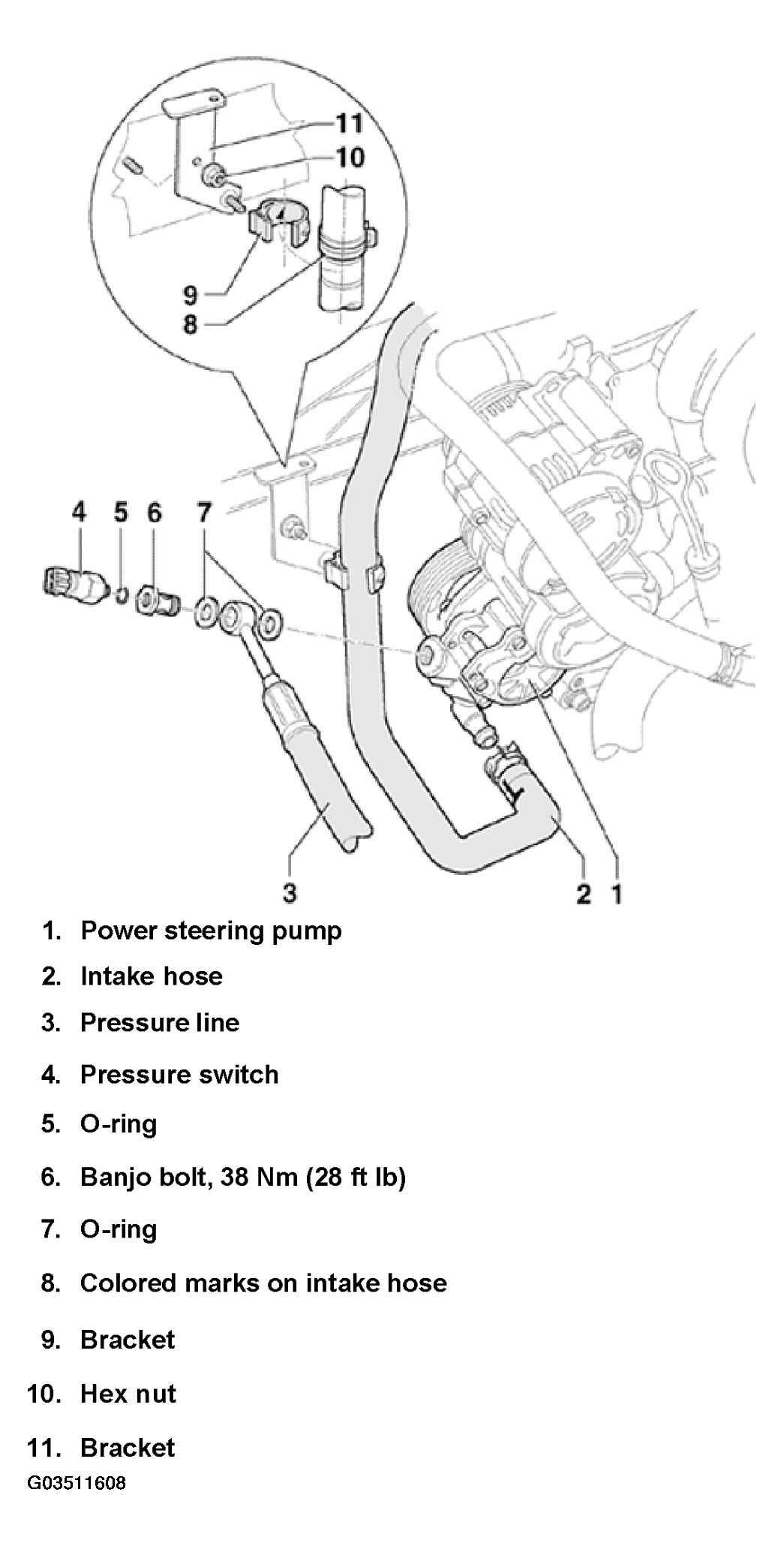

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With 1.9 Ltr. TDI Engines Without A/C
G03511608Courtesy of VOLKSWAGEN OF AMERICA, INC.
