Reservoir, disassembling and assembling
NOTE:

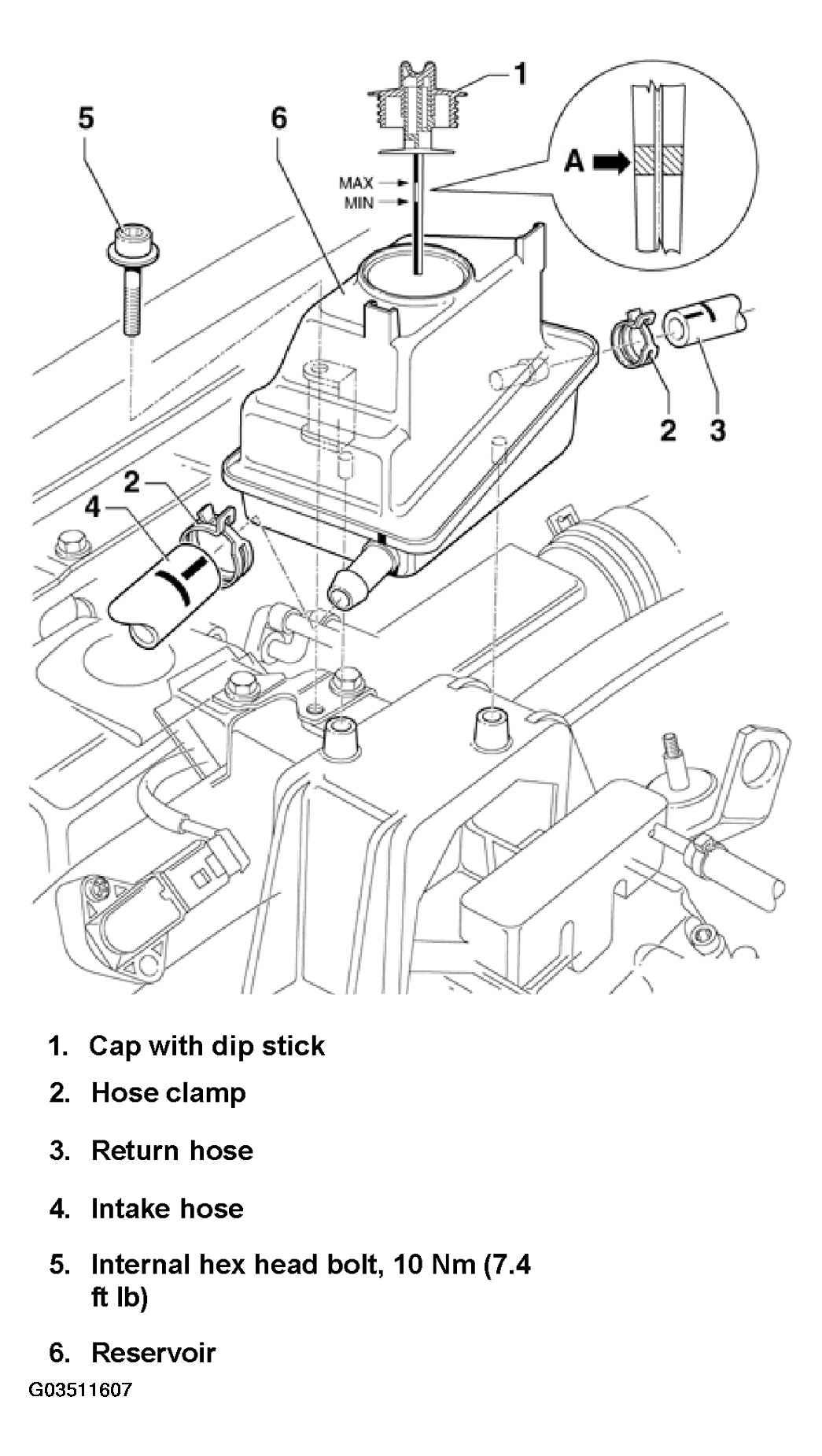

The following list refers to items in Fig 1.
- Cap with dip stick
- Oil level: between min. and max. marks; Engine temperature approx. 50° C (122° F)
- - Arrow A - : oil level with engine cold
- With engine cold, oil level must not rise above Min. marking
- Check oil level with cap screw on
- Open cap with e.g. a bar
- Hose clamp
- Return hose
- Intake hose
- Internal hex head bolt, 10 N.m (7.4 ft. lb)
- Reservoir
