Vehicles with low mounted power steering pump: Notes

Clamp return hose with hose clamp 3093.

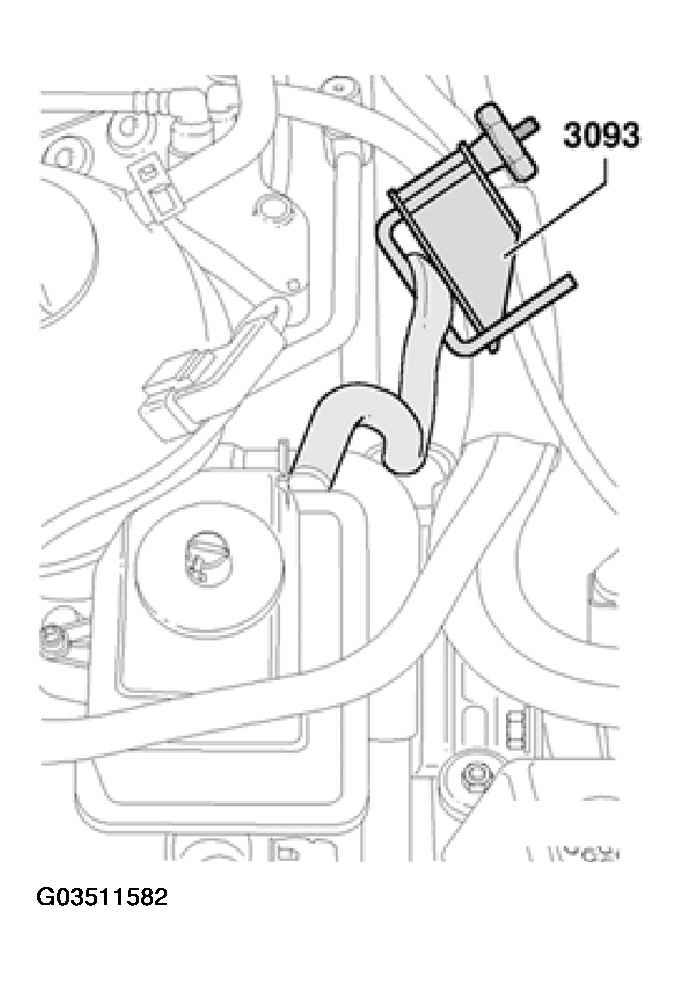

Fig 1: Clamping Return Hose With Hose Clamp 3093

G03511582

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove noise insulation tray.
Clamp intake hose with hose clamp 3094.

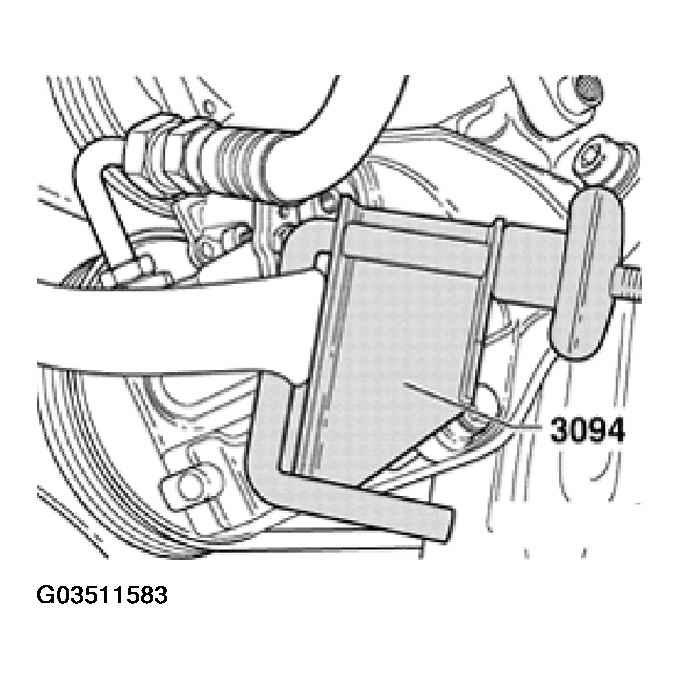

Fig 2: Clamping Intake Hose With Hose Clamp 3094

G03511583

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Place oil pan under vehicle.
Disconnect pump pressure line.
Disconnect connector from pressure switch if necessary.
Install adapter - 1 - .

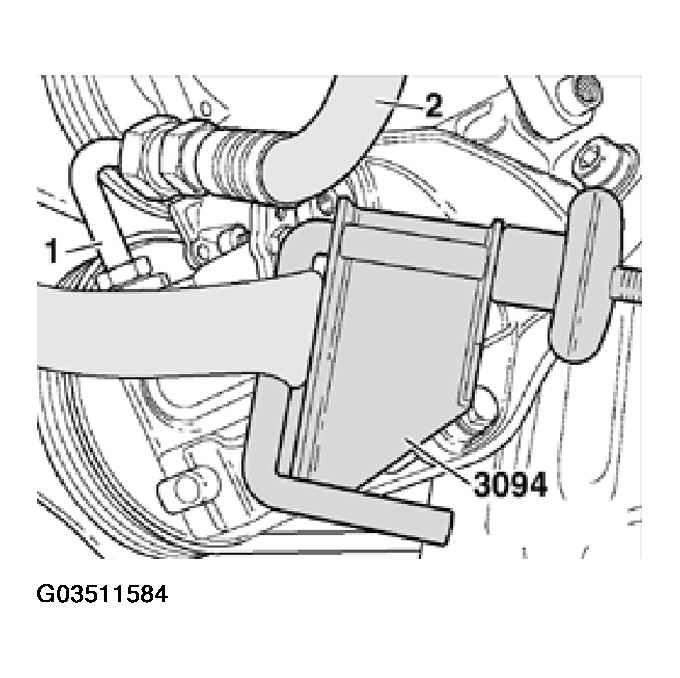

Fig 3: Installing Adapter
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Use a sealing ring.
1. - V.A.G1402/1
2. - Hose from adapter set V.A.G1402/6

Connect pressure gauge V.A.G1402

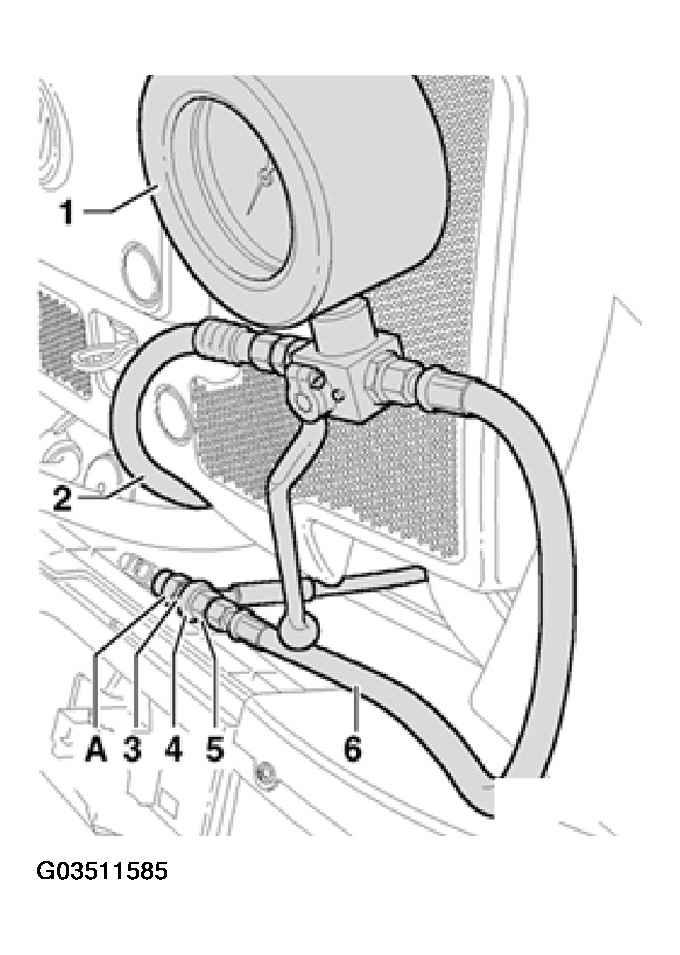

Fig 4: Connecting Pressure Gauge V.A.G1402 (Vehicles With Low Mounted Power Steering Pump)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
1. - Pressure switch, 1.8 ltr. gasoline engines only
  1. - Pressure gauge V.A.G1402
  2. - Hose from adapter set V.A.G1402/6
  3. - Banjo bolt
  4. - Pressure hose banjo union
  5. - V.A.G1402/2
  6. - Hose from pressure gauge V.A.G1402
Remove hose clamp 3094 from intake and return hoses.
Re-connect intake and return hoses.
Start engine and if necessary add fluid to reservoir.
Turn steering wheel from lock to lock about 10 times.
Check delivery pressure.
