Vehicles with high mounted power steering pump: Notes

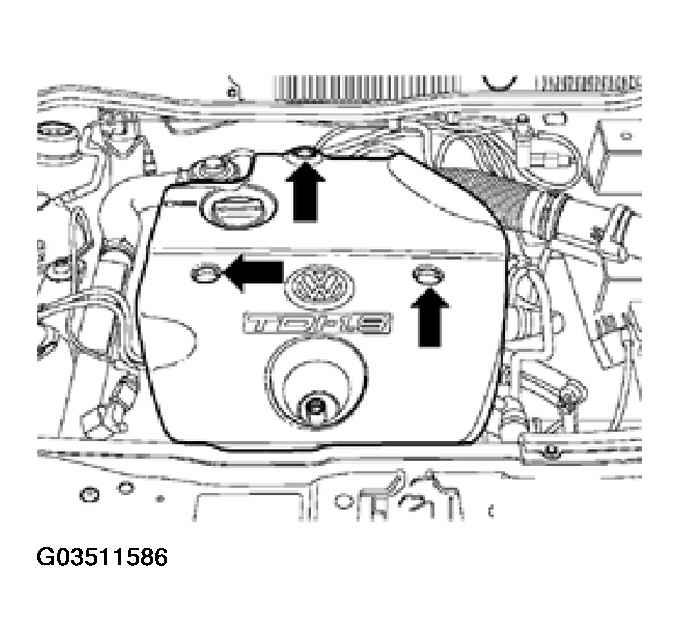

• Remove engine cover.
Fig 1: Removing Engine Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.

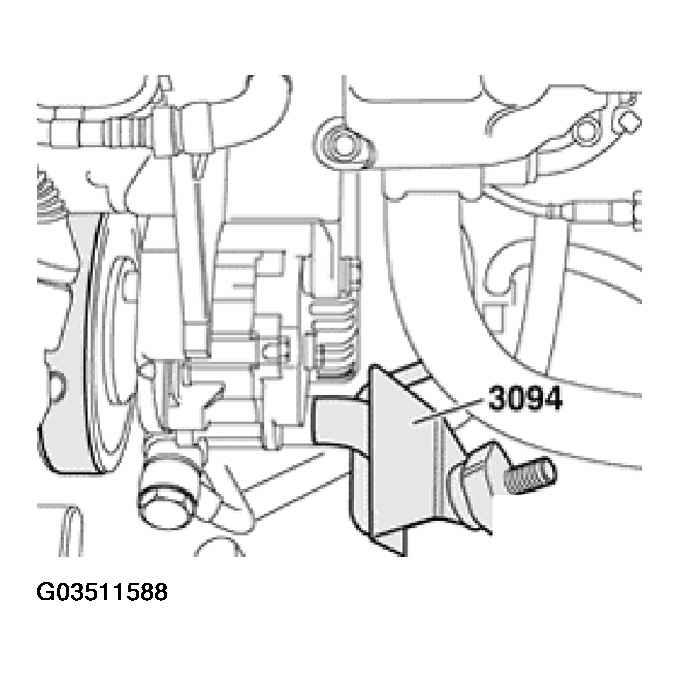

• Clamp return hose with hose clamp 3094.
Fig 2: Clamping Return Hose With Hose Clamp 3094
Courtesy of VOLKSWAGEN OF AMERICA, INC.

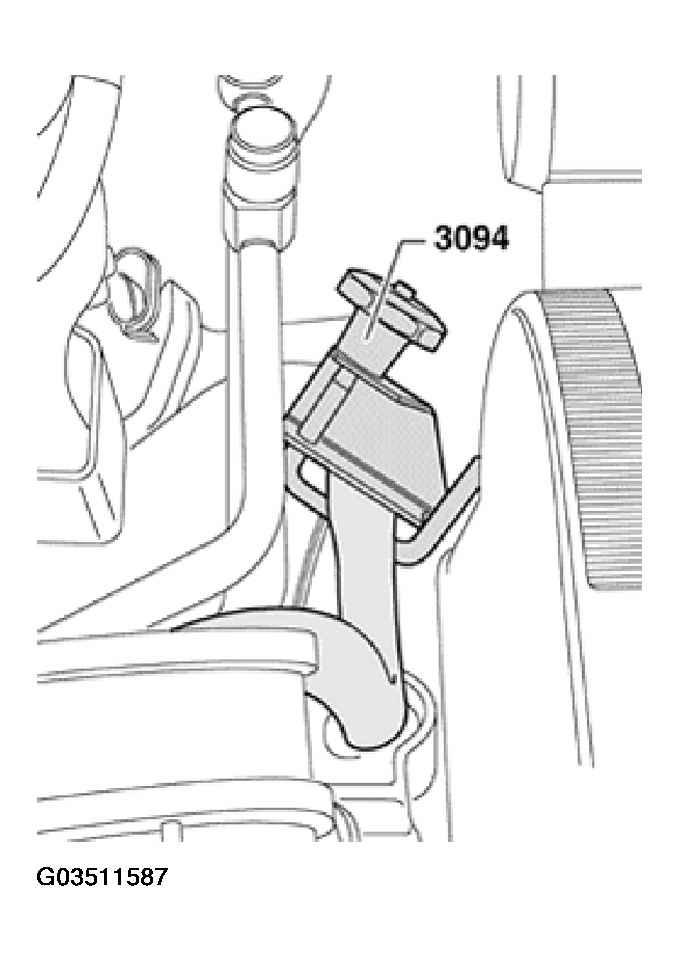

• Clamp intake hose with hose clamp 3094.
Fig 3: Clamping Intake Hose With Hose Clamp 3094
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Place oil pan under vehicle.
• Disconnect pressure line at the pump.

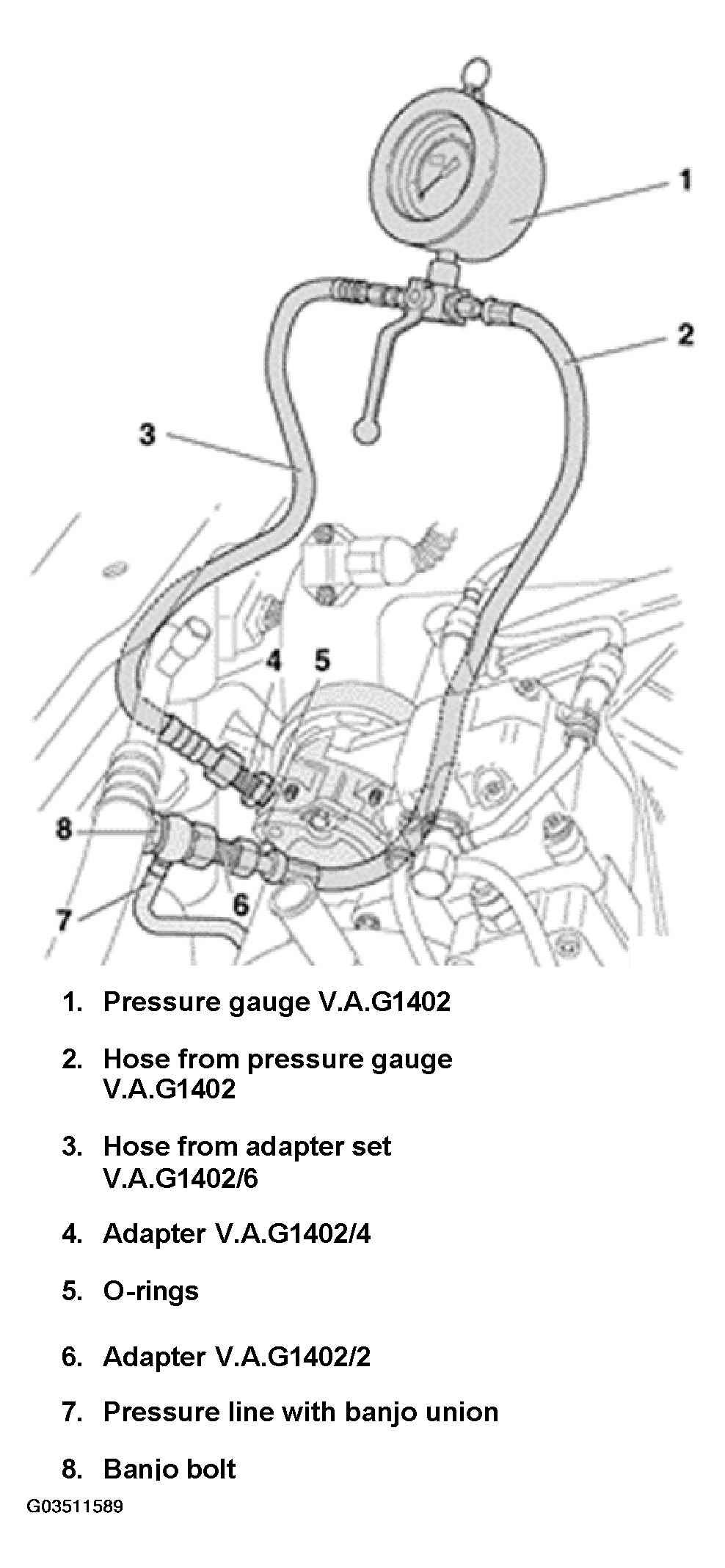

Connect pressure gauge V.A.G1402

1. Pressure gauge V.A.G1402
2. Hose from pressure gauge V.A.G1402
3. Hose from adapter set V.A.G1402/6
4. Adapter V.A.G1402/4
5. O-rings
   • Qty. 2
6. Adapter V.A.G1402/2
7. Pressure line with banjo union
8. Banjo bolt

Fig 4: Connecting Pressure Gauge V.A.G1402 (Vehicles With High Mounted Power Steering Pump)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Remove hose clamp 3094 from intake and return hoses.
• Start engine and if necessary add fluid to reservoir.
• Turn steering wheel from lock to lock about 10 times.
• Check delivery pressure.
