Special tools, testers and auxiliary items required

• Hose clamps 3094
• Power steering test unit V.A.G1402
• Adapter V.A.G1402/2
• Adapter V.A.G1402/3
• Adapter V.A.G1402/4
• Hose from adapter set V.A.G1402/6
• Spring type clip pliers VAS 5024 A
• Adapter V.A.G 1402/1A

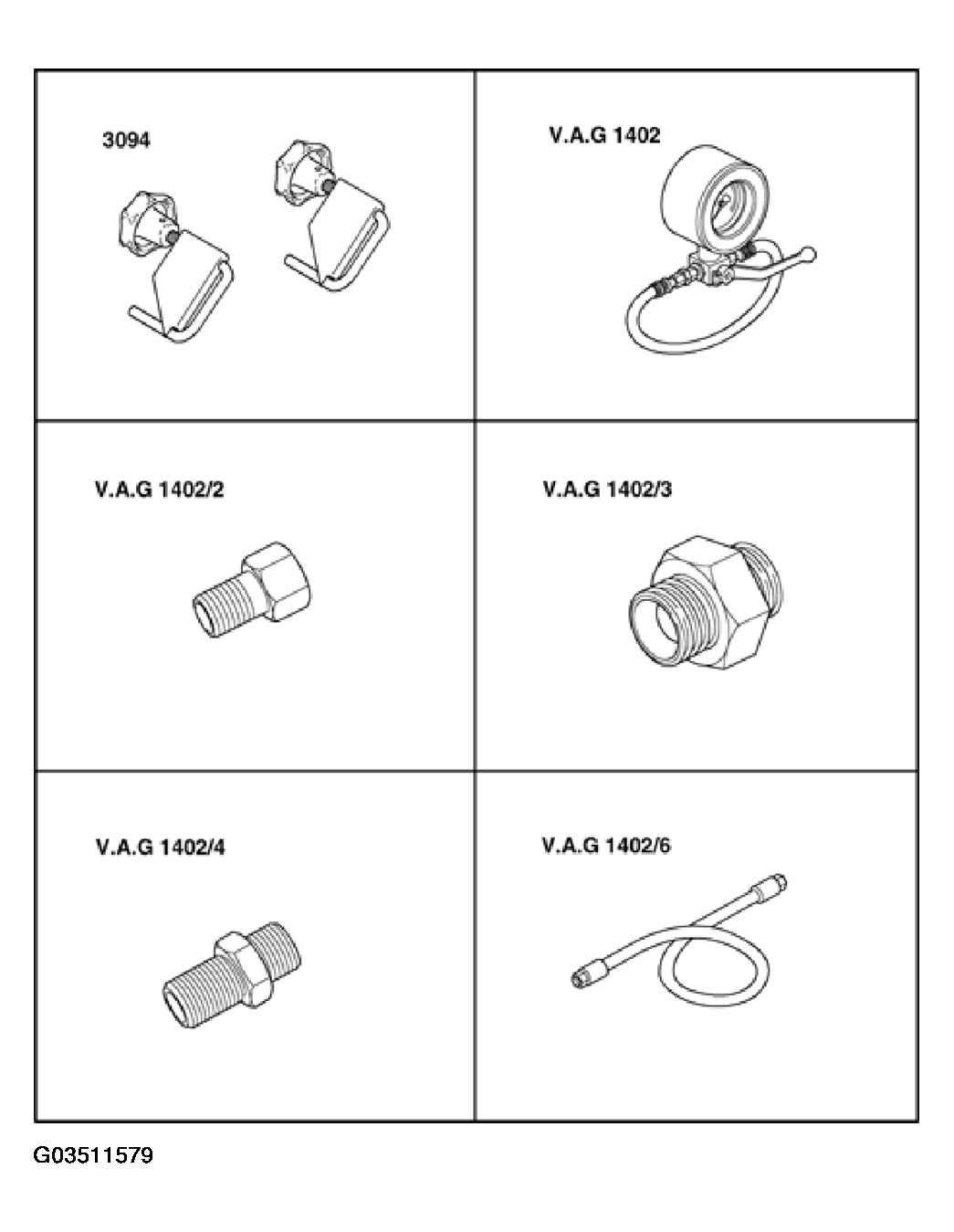

Fig 1: Identifying Special Tools

Courtesy of VOLKSWAGEN OF AMERICA, INC.

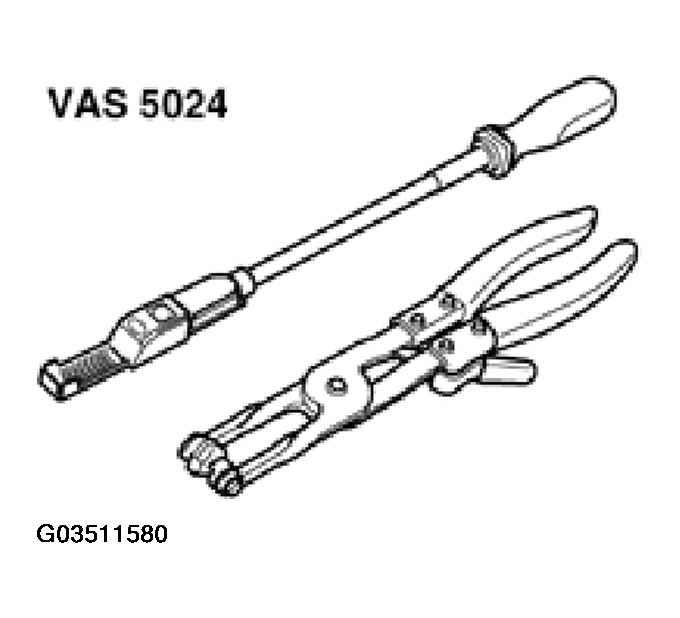

Fig 2: Identifying Spring Type Clip Pliers VAS 5024 A

Courtesy of VOLKSWAGEN OF AMERICA, INC.

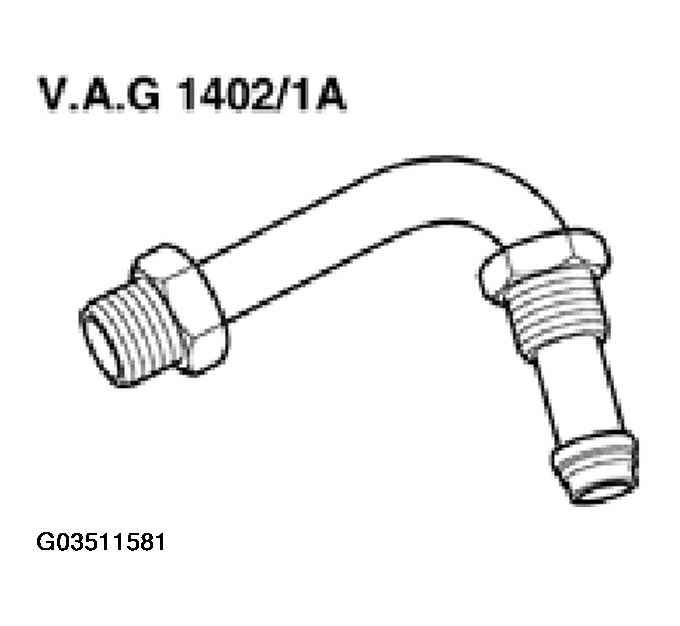

Fig 3: Identifying Adapter V.A.G 1402/1A

Courtesy of VOLKSWAGEN OF AMERICA, INC.
