P.A.S. power steering pump, vehicles with low mounted power steering pump, removing and installing: Removing

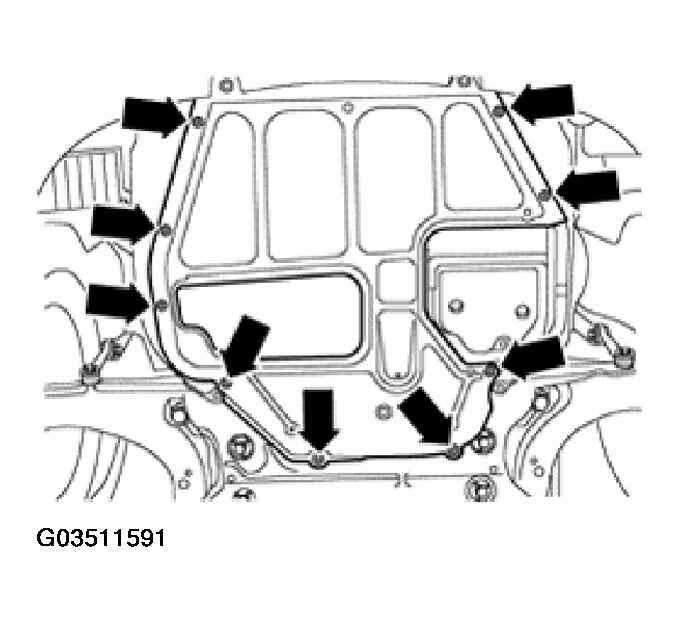

• Remove noise insulation.
Fig 1: Removing Noise Insulation
Courtesy of VOLKSWAGEN OF AMERICA, INC.

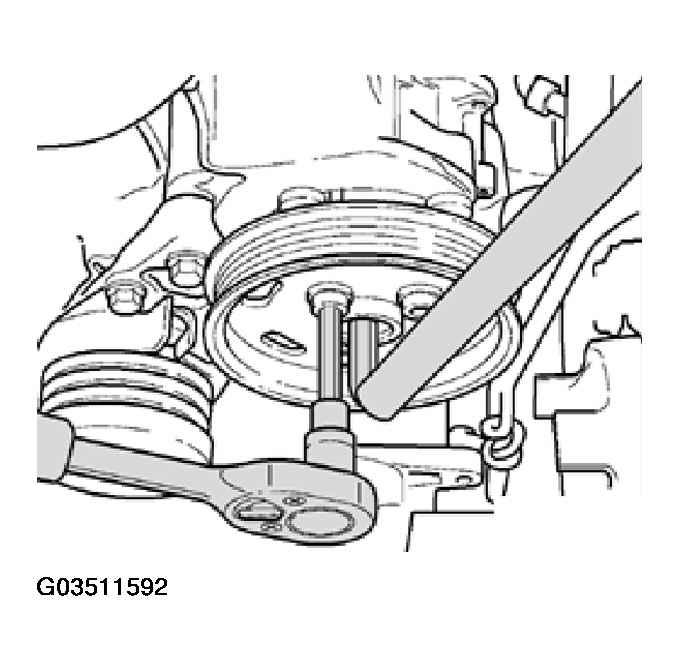

• Loosen belt pulley hex socket head bolt.

  Counter-hold with a hex key if necessary.

Fig 2: Loosening Belt Pulley Hex Socket Head Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.

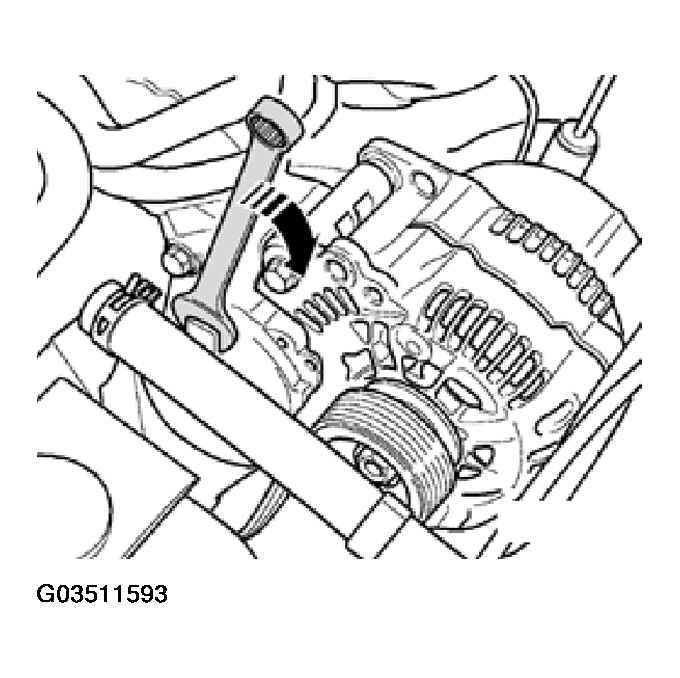

• Turn tightening device in direction of - arrow -  to loosen the ribbed V-belt.
Fig 3: Loosening Ribbed V-Belt
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Mark direction of rotation of the poly-V belt
• Remove ribbed belt.
• Remove belt pulley hex. socket head bolt.

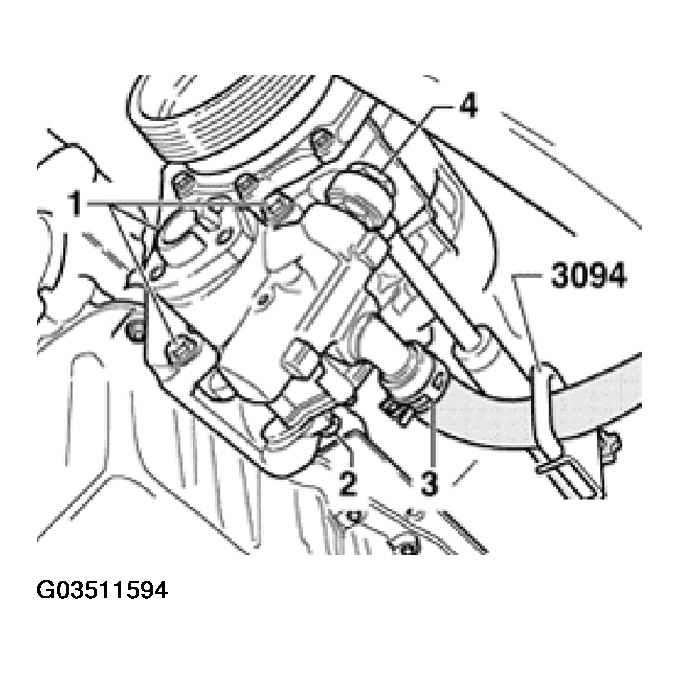

• Clamp off intake hose with hose clamps 3094.
Fig 4: Clamping Off Intake Hose With Hose Clamps 3094
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Open spring clamp - 3 -  and pull off intake hose

Use assembly tool for spring-type clip pliers VAS5024 for this.

• Remove banjo bolt - 4 -  .
• Close off the pressure line with a plastic bag or similar.
• Remove hex bolts - 1 -  and - 2 -  .
• Take out pump.
