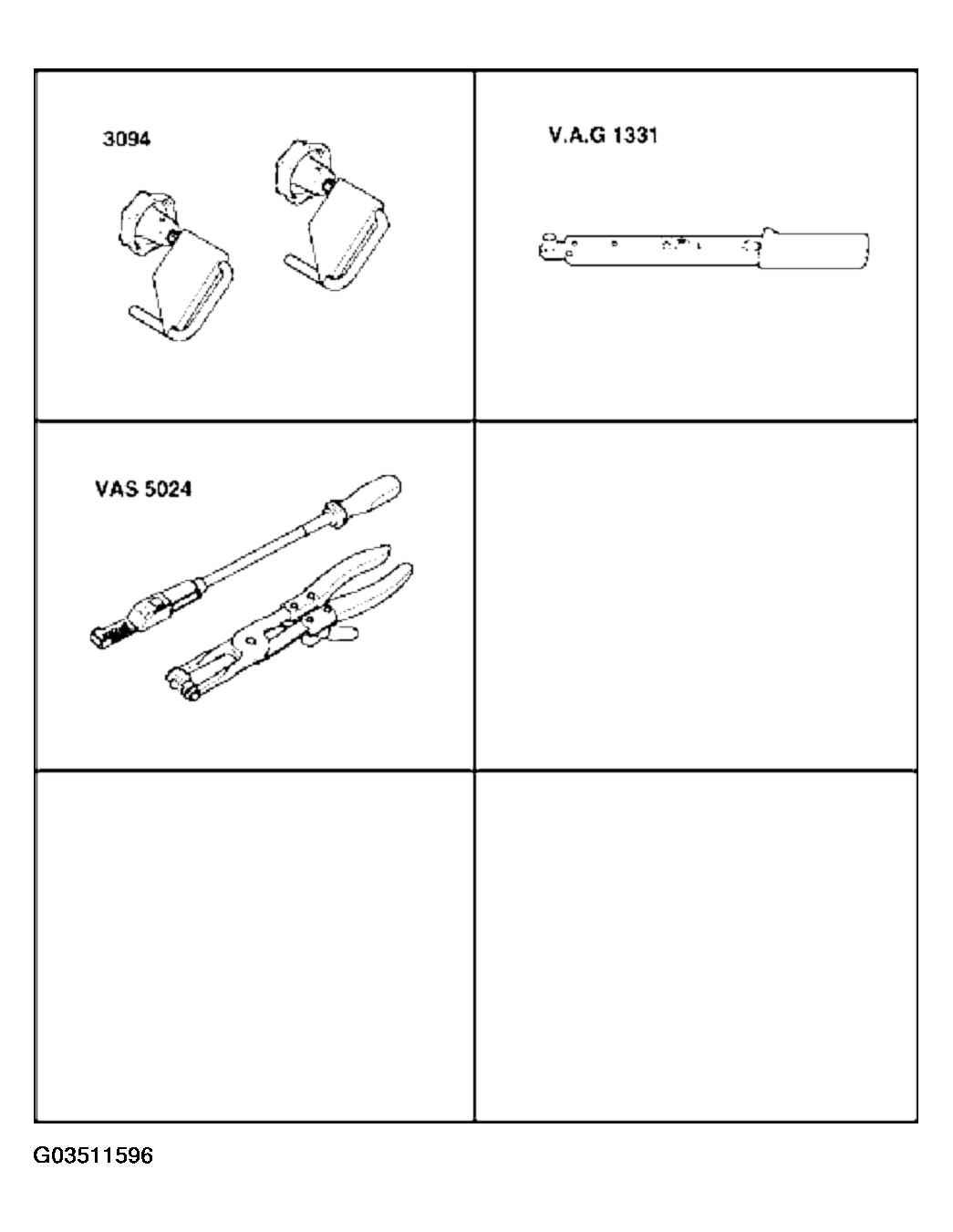

Special tools, testers and auxiliary items required
- Hose clamps 3094
- Torque wrench V.A.G1331
- Assembly tool for spring-type clip pliers VAS5024
Power steering pump is not serviceable. If complaints are received, determine cause with the help of pressure tests, leak test and Guided fault finding. If a malfunction is present, the pump must be replaced.
NOTE:
- Pumps supplied as replacement parts are not filled with oil. They must be filled with hydraulic fluid G002 000 and turned by hand before installation, otherwise the pump may be damaged or noisy during operation.
- Type of fluid: Hydraulic fluid G 002 000
- System oil capacity: 0.7 ... 0.9 ltr (11.8 - 15.2 oz.).
