P.A.S. power steering pump, vehicles with high mounted power steering pump, removing and installing: Removing
- Remove noise insulation.

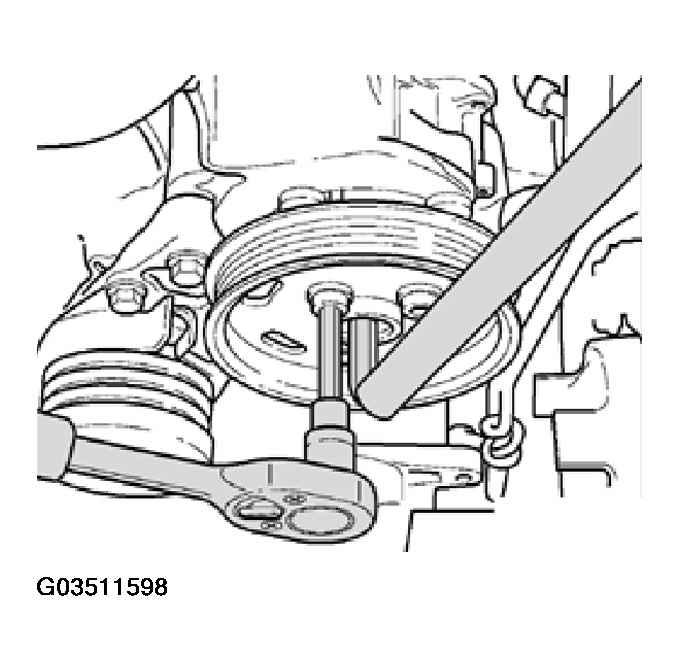

- Loosen belt pulley hex socket head bolt.
Counter -hold with a hex key if necessary.

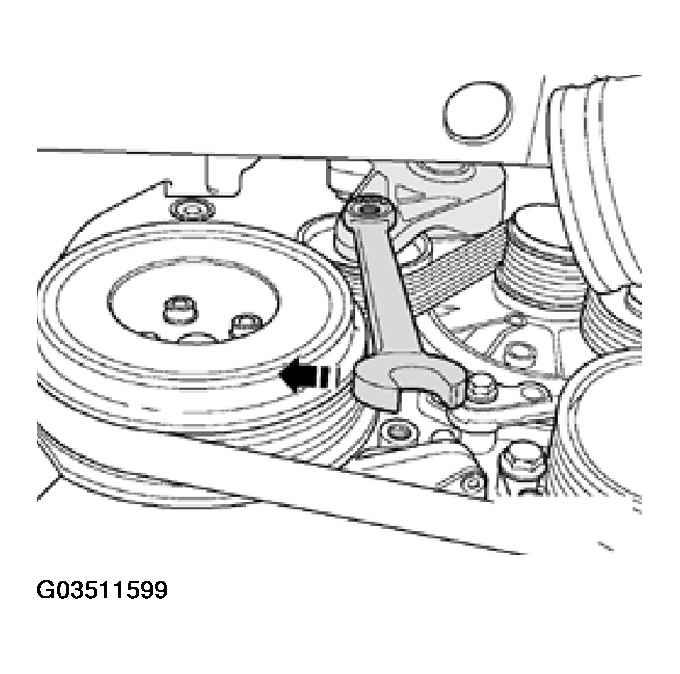

- Turn tightening device in direction of - arrow -
to relieve tension on ribbed belt.
For ease of illustration, relieving belt pulley tension is shown without charge air line.
- Mark direction of rotation of ribbed belt.
- Remove ribbed belt.
- Remove belt pulley hex. socket head bolt.
