P.A.S. power steering pump, vehicles with high mounted power steering pump, removing and installing: Installing
- Fill the pump with hydraulic fluid.
Fill pump with fluid through intake line.
- Turn hub by hand until oil comes from pressure side.
- Install power steering pump on bracket and tighten bolts to 25 N.m (18 ft. lb).
- Install intake hose and spring-type clip.

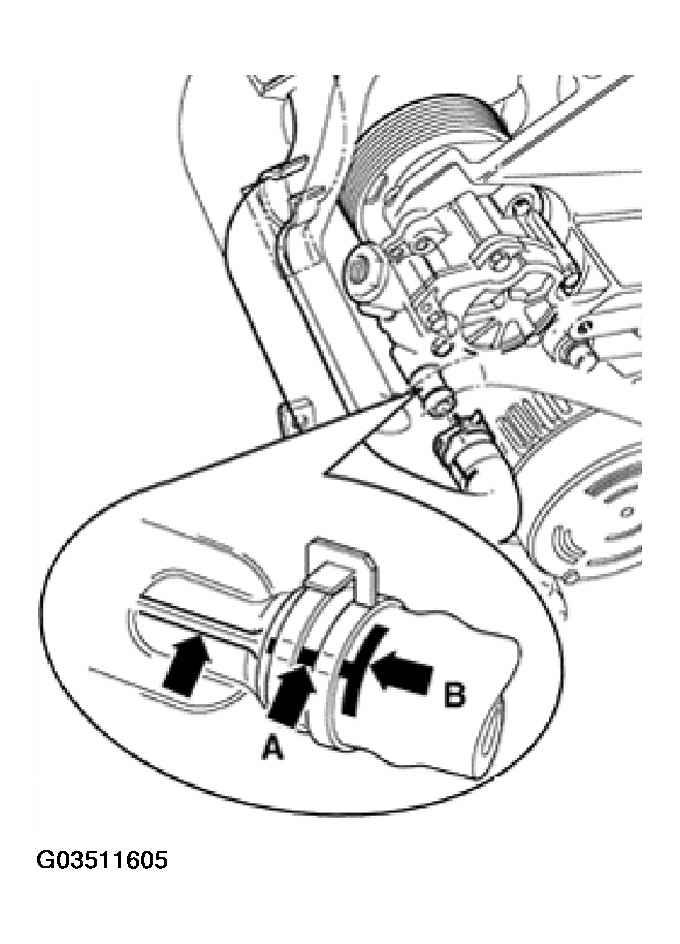

The mark - arrow A - must align with casting seam - arrow - .
The spring-type clip must close off mark - arrow B -.
- Install new sealing rings onto banjo bolt.
- Tighten banjo bolt to 38 N.m (28 ft. lb).
Installation is continued in reverse sequence
