Vehicles with high mounted power steering pump
NOTE:

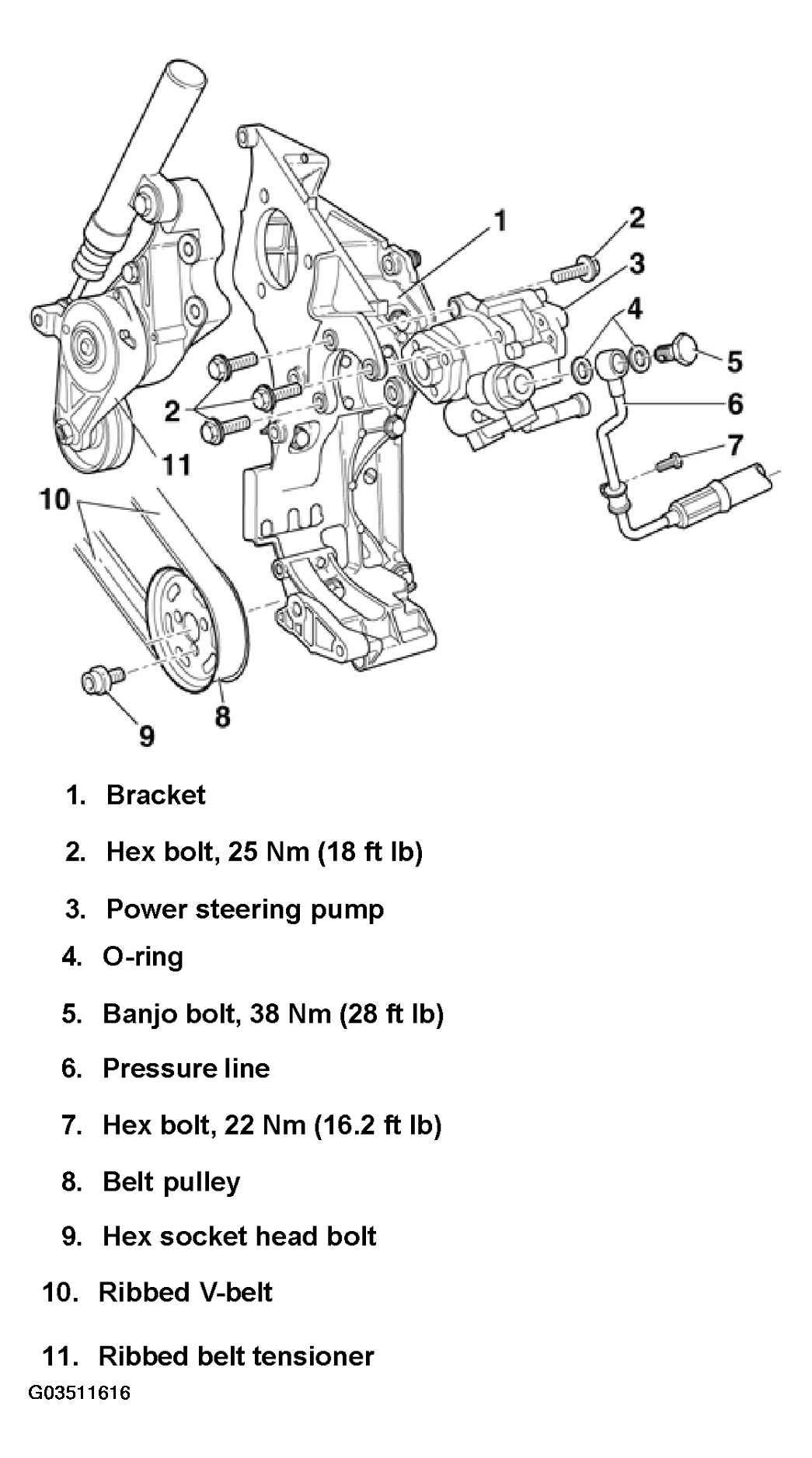

The following list refers to items in Fig 1.
- Bracket
- Hex bolt, 25 N.m (18 ft. lb)
- Power steering pump
- Check delivery pressure. See POWER STEERING PUMP DELIVERY PRESSURE, CHECKING .
- Fill with fluid before installing. See Specifications
- O-ring
- Always replace
- Banjo bolt, 38 N.m (28 ft. lb)
- Pressure line
- Hex bolt, 22 N.m (16.2 ft. lb)
- Belt pulley
- Hex socket head bolt
- 25 N.m (18 ft. lb)
- Ribbed V-belt
- Mark direction of travel before removing
- Application, See Parts Catalog
- Removing and belt routing.
See appropriate SPECIFICATIONS & DRIVE BELT ROUTING article.
- Checking condition
- Ribbed belt tensioner
