Parking brake lever, assembly overview

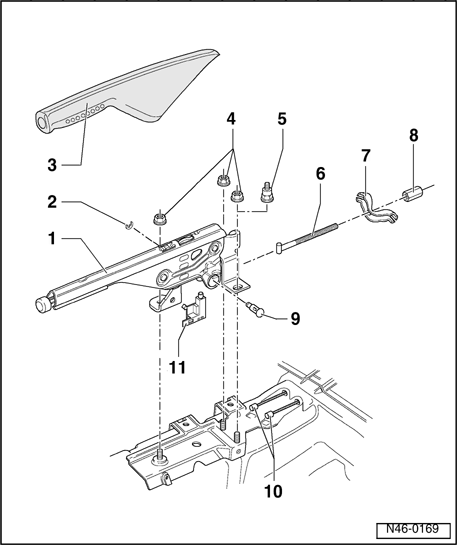

Fig 1: Exploded View Of Parking Brake Lever Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Parking brake lever

• Before removing take out center console

2 - Circlip

3 - Parking brake lever trim

• Pull off forward
• Pry up release tab in rear lower area of trim with a screwdriver

4 - Hex nut, 25 Nm (18 ft. lb)

5 - Adapter

• For vehicles with center armrest

6 - Pull rod

7 - Compensator

8 - Adjusting nut

• Adjusting parking brake:

• Vehicles with disc brakes/front wheel drive. Refer to Parking brake cables for disc brakes - front wheel drive, removing and installing
• Vehicles with disc brakes/all-wheel drive. Refer to Parking brake cables for disc brakes - all wheel drive, removing and installing

9 - Fulcrum pin

• Mounts pull rod -item 6, Parking brake lever, assembly overview  in parking brake

10 - Parking brake cables

• Removing and installing (disc brakes/front wheel drive). Refer to Parking brake cables for disc brakes - front wheel drive, removing and installing
• Removing and installing (disc brakes/all-wheel drive). Refer to Parking brake cables for disc brakes - all wheel drive, removing and installing

11 - Parking brake warning switch
