Lock carrier with attachments, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

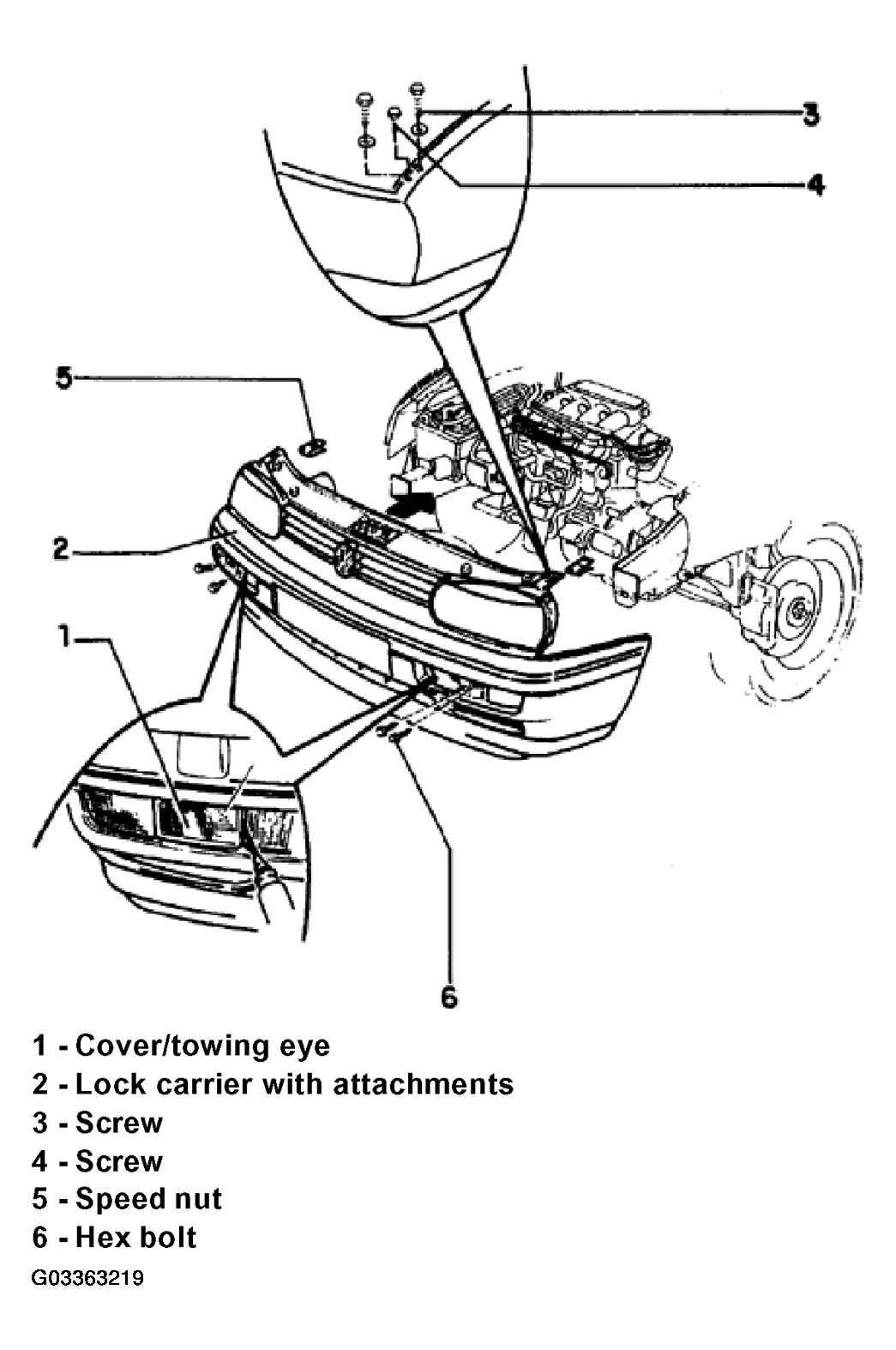

The following list pertains to Fig 1 .
- Cover/towing eye
- Removing: Swing toward front using suitable tool and detach from turn signal/holder
- Lock carrier with attachments
- Must be installed free of stress
- Screw
- 5 N.m +/- 0.5 N.m (44 4 in. lb)
- Screw
- 3 N.m + 0.5 N.m (27 4 in. lb)
- Speed nut
- Hex bolt
- 23 N.m (17 ft lb)
