Clutch Release Mechanism, Servicing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Volkswagen Jetta, 2005 Volkswagen GTI, 2004 Volkswagen Jetta, 2004 Volkswagen GTI, and 2003 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and equipment

Fig 1: Torque Wrench V.A.G. 1331 (5 To 50 Nm)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

VAG 1331 Torque wrench or equivalent

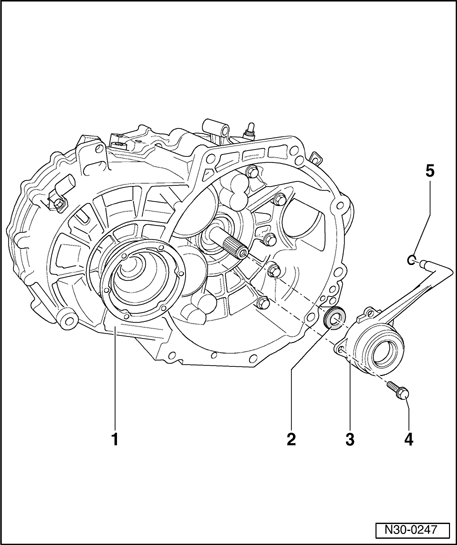

Fig 2: Identifying Clutch Release Mechanism

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Transmission

2 - Input shaft oil seal

Replacing. Refer to Clutch housing, servicing

3 - Slave cylinder with release bearing

One unit; can only be replaced together
Do not wash out bearing, only wipe
Replace noisy bearings together with slave cylinder

4 - Bolt, 12 Nm

Qty. 3

5 - Seal

Always replace
Pull onto line/hose connection
Insert with brake fluid
