Tie rods (TRW or ZF), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

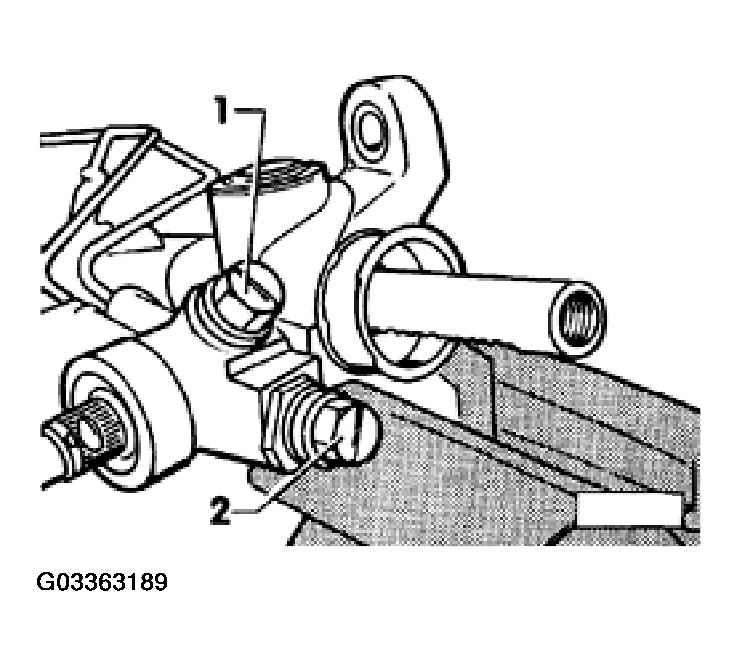

Seal hydraulic line connections on steering gear.
1. - Plastic plug
2. - Plastic plug
Fig 1: Identifying Plastic Plug Of Seal Hydraulic Line Connections On Steering Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Clean outside of steering gear in area of boot.
Open clamp and push back boot.

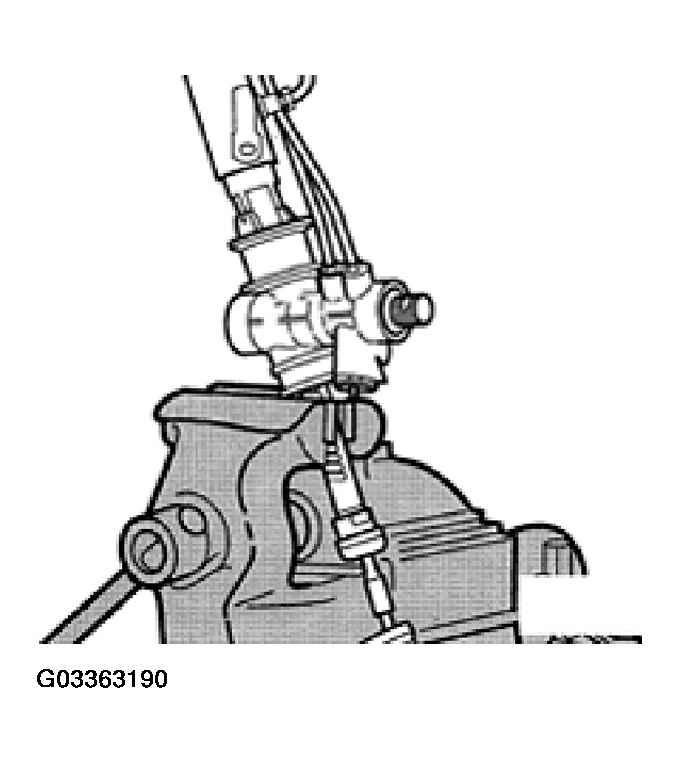

Hold steering gear by clamping rack in vise and remove tie rod.
- If possible use open end wrench instead of vise
- If using vise, remove contaminates such as metal filings etc. (if necessary)

Fig 2: Removing Tie Rod

Courtesy of VOLKSWAGEN OF AMERICA, INC.
