Identifying tie rod ends

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Up to VIN 1ER 030 000

- Manufacturer: TRW Vehicle Systems. See Fig 1.
Centered mark on pin (arrow -A-)

Manufacture's mark "ECO" on lower side
- Manufacturer: Lemfoerder Metallwaren. See Fig 1.
Conical recess on pin (arrow -B-)

Manufacture's mark "LMO" or "LME" on lower side

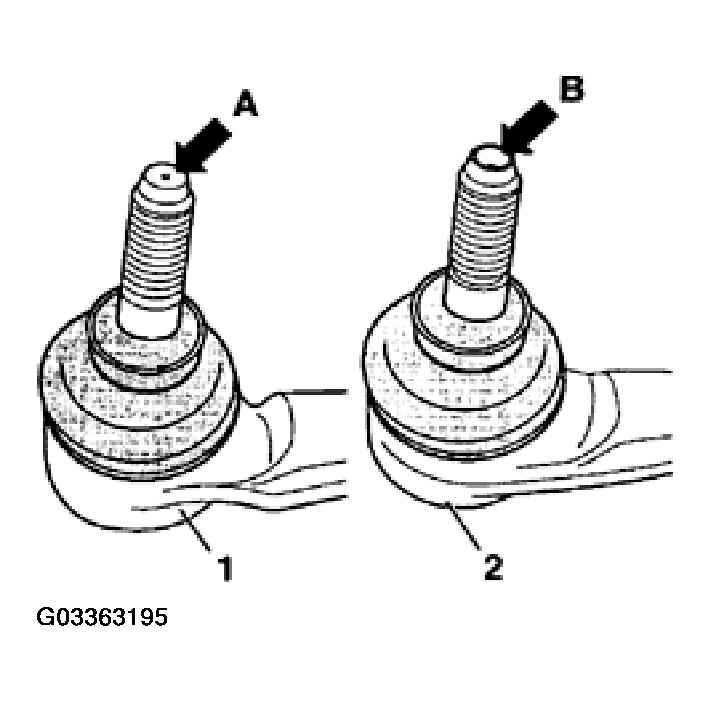

Fig 1: Identifying Tie Rod Ends

Courtesy of VOLKSWAGEN OF AMERICA, INC.

From VIN 1ES 000 001

- Manufacturer: TRW Vehicle Systems. See Fig 2.
Cylindrical recess and centered mark (arrow -A-) on pin

Manufacture's mark "ECO" on lower side

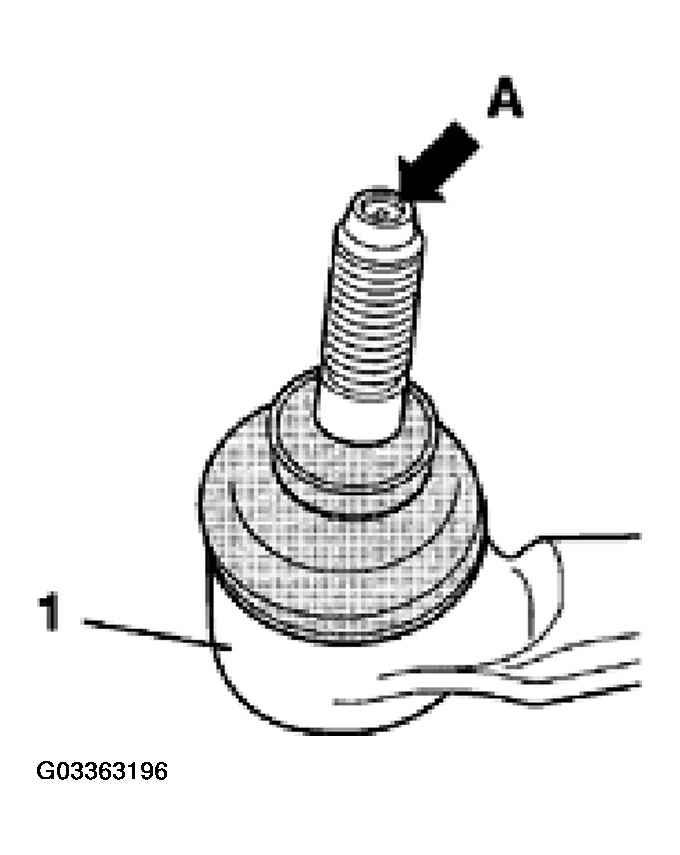

Fig 2: Identifying Tie Rod Ends

Courtesy of VOLKSWAGEN OF AMERICA, INC.
