Power steering pump, reservoir and hydraulic lines, servicing: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
The power steering pump cannot be repaired. Determine the cause of any malfunctions using pressure and leakage tests. If necessary, replace the power steering pump.
NOTE:
- Power steering pumps supplied as replacement parts are not filled with oil. The new pump must be filled with hydraulic oil, Part No. G 002 000, and rotated by hand, or the pump may become damaged or noisy during operation.
- Hydraulic oil type: G 002 000
- Power steering system oil capacity: 0.7-0.9 liter (0.74-0.95 qt.)

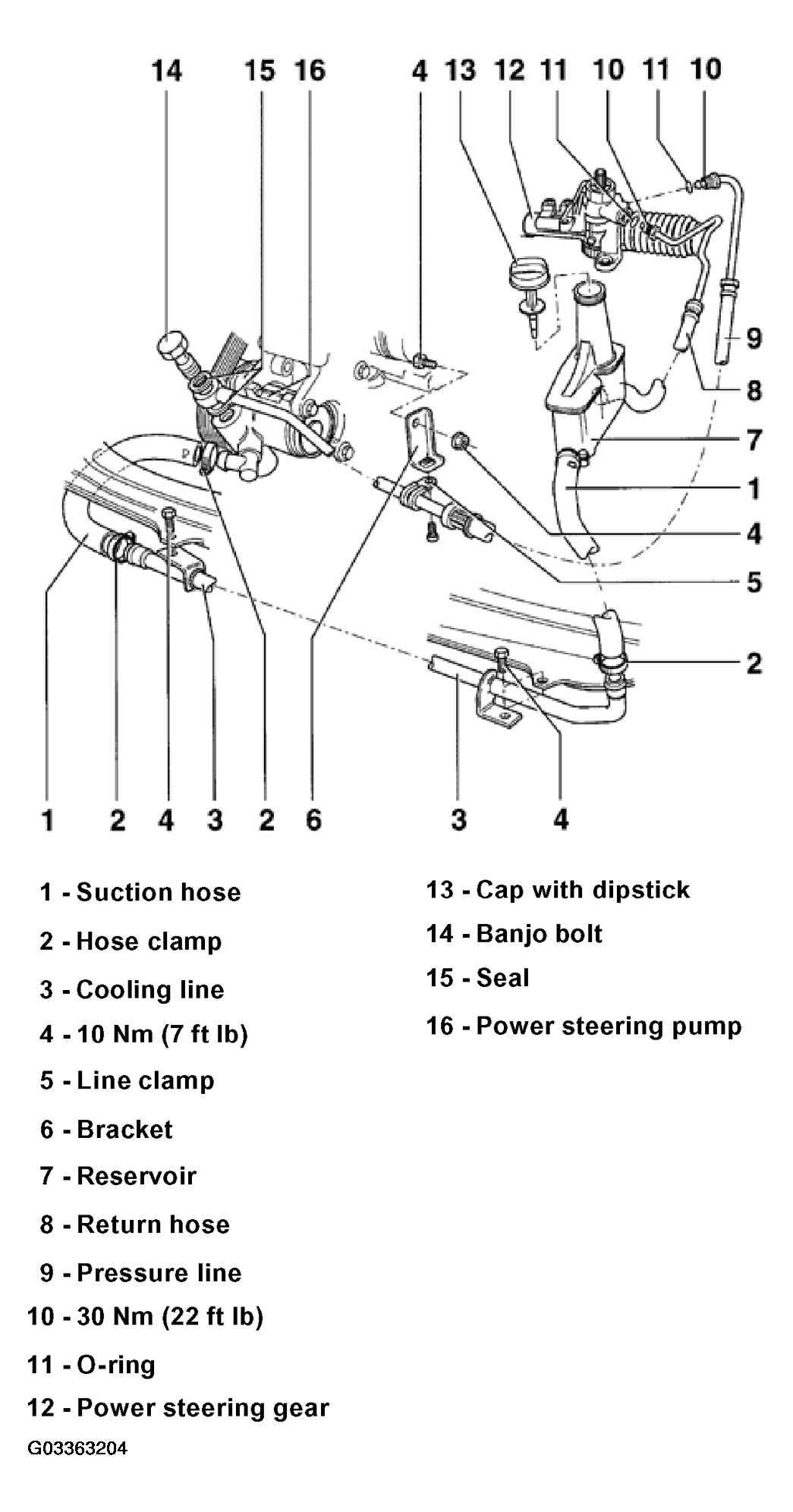

The following list pertains to Fig 1.
- Suction hose
- Hose clamp
- Cooling line
- 10 N.m (7 ft lb)
- Line clamp
- Bracket
- Various versions depending upon engine/transmission
- Reservoir
- Return hose
- Pressure line
- Tighten to 30 N.m (22 ft lb)
- 30 N.m (22 ft lb)
- O-ring
- Always replace
- Power steering gear
- Removing and installing, see POWER STEERING, SERVICING
- TRW, see POWER STEERING GEAR (TRW)
- ZF, see POWER STEERING GEAR (ZF)
- Cap with dipstick
- Oil level: must be between MIN and MAX marks
- Banjo bolt
- 30 N.m (22 ft lb)
- Seal
- Always replace
- Power steering pump
Servicing:
- Vehicles up to 115 hp, see POWER STEERING PUMP, SERVICING (VEHICLES WITH 1.8, 1.9 AND 2.0 LITER ENGINES)
- Vehicles with VR6 172 hp engine, see POWER STEERING PUMP, SERVICING (VEHICLES WITH 2.8 LITER VR6 ENGINE)
- Before installing: fill with hydraulic oil, see Notes in POWER STEERING PUMP, RESERVOIR AND HYDRAULIC LINES, SERVICING
