Glow Plug System Wiring Diagrams

WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

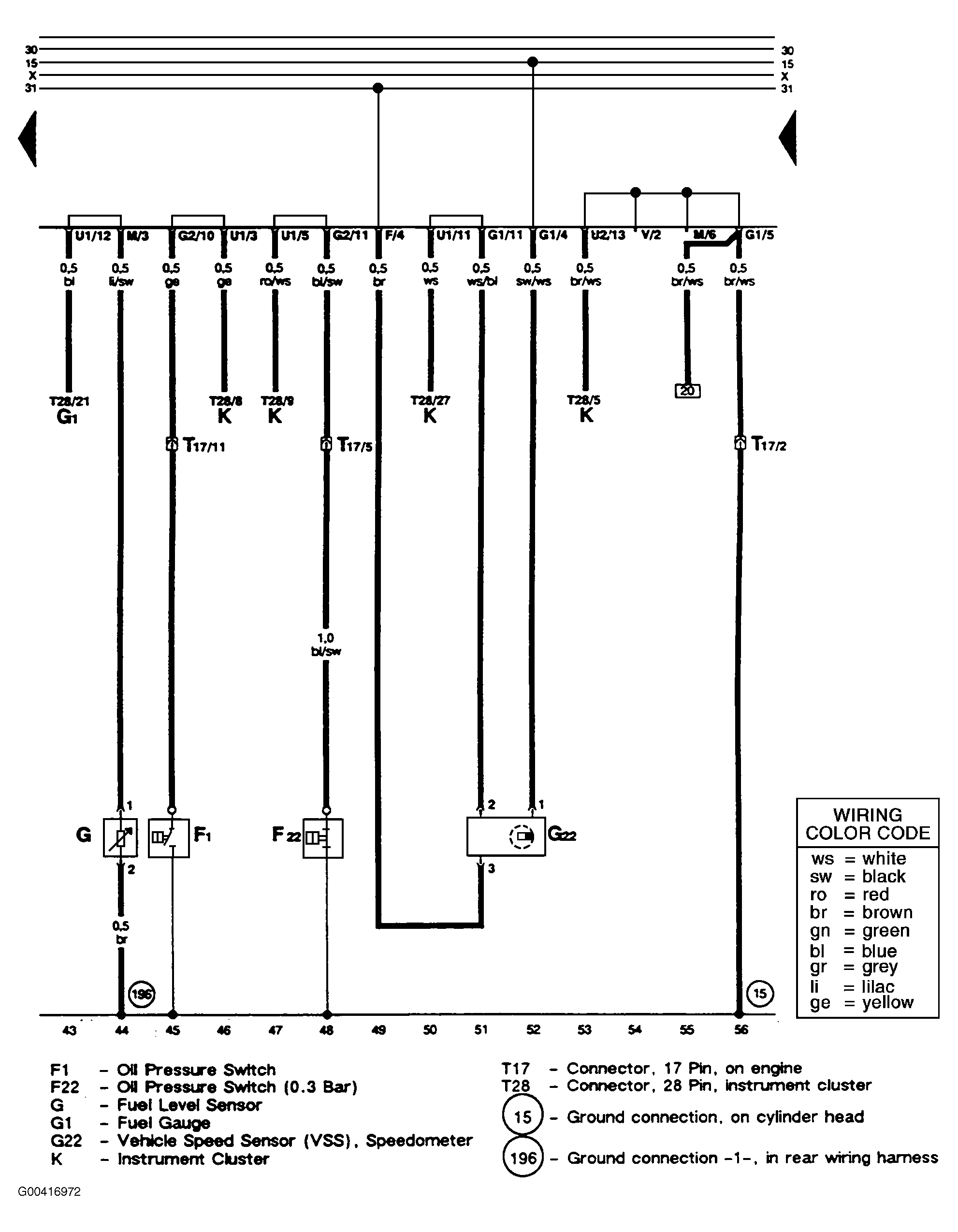

Fig 1: Glow Plug System Wiring Diagram (1 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

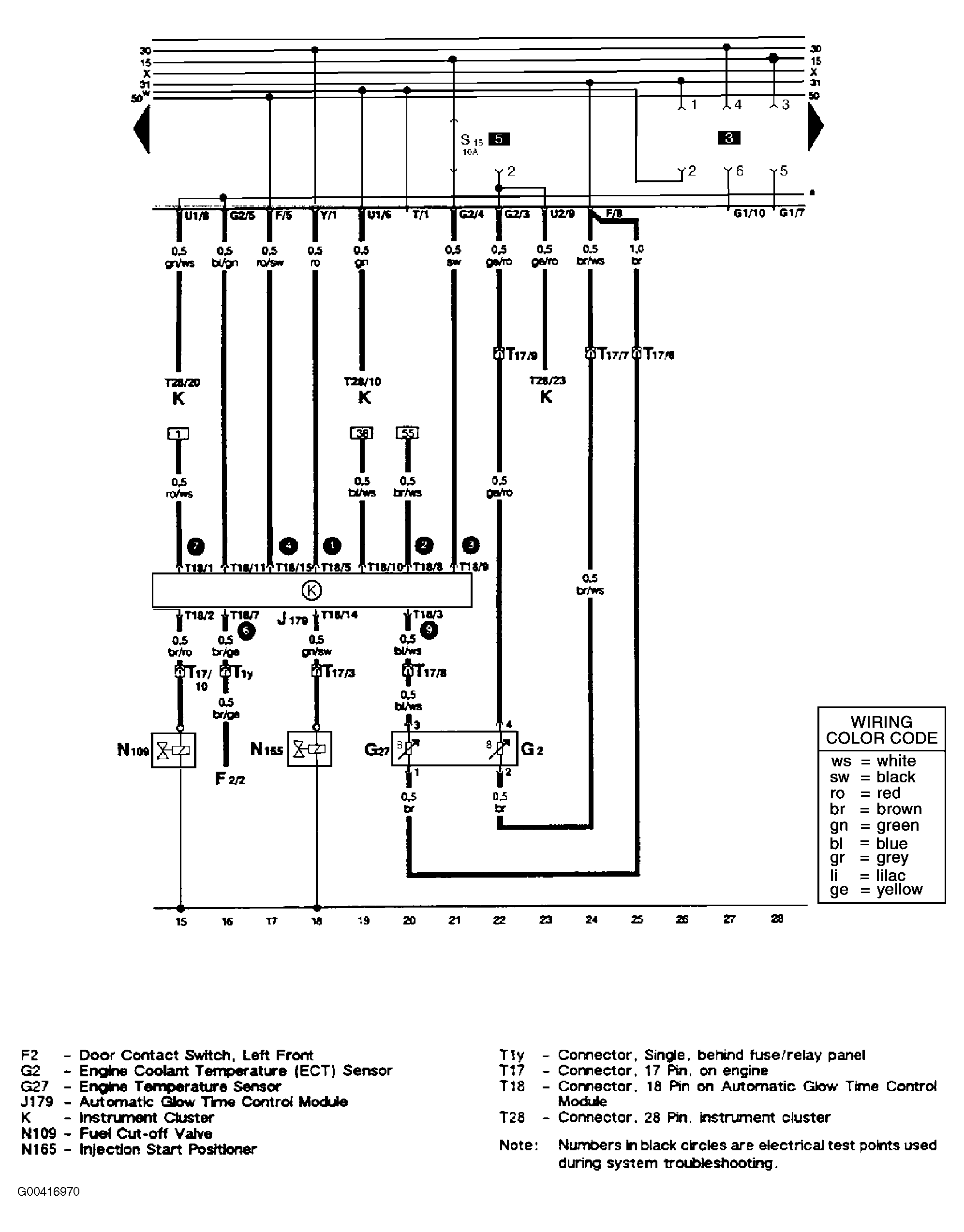

Fig 2: Glow Plug System Wiring Diagram (2 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

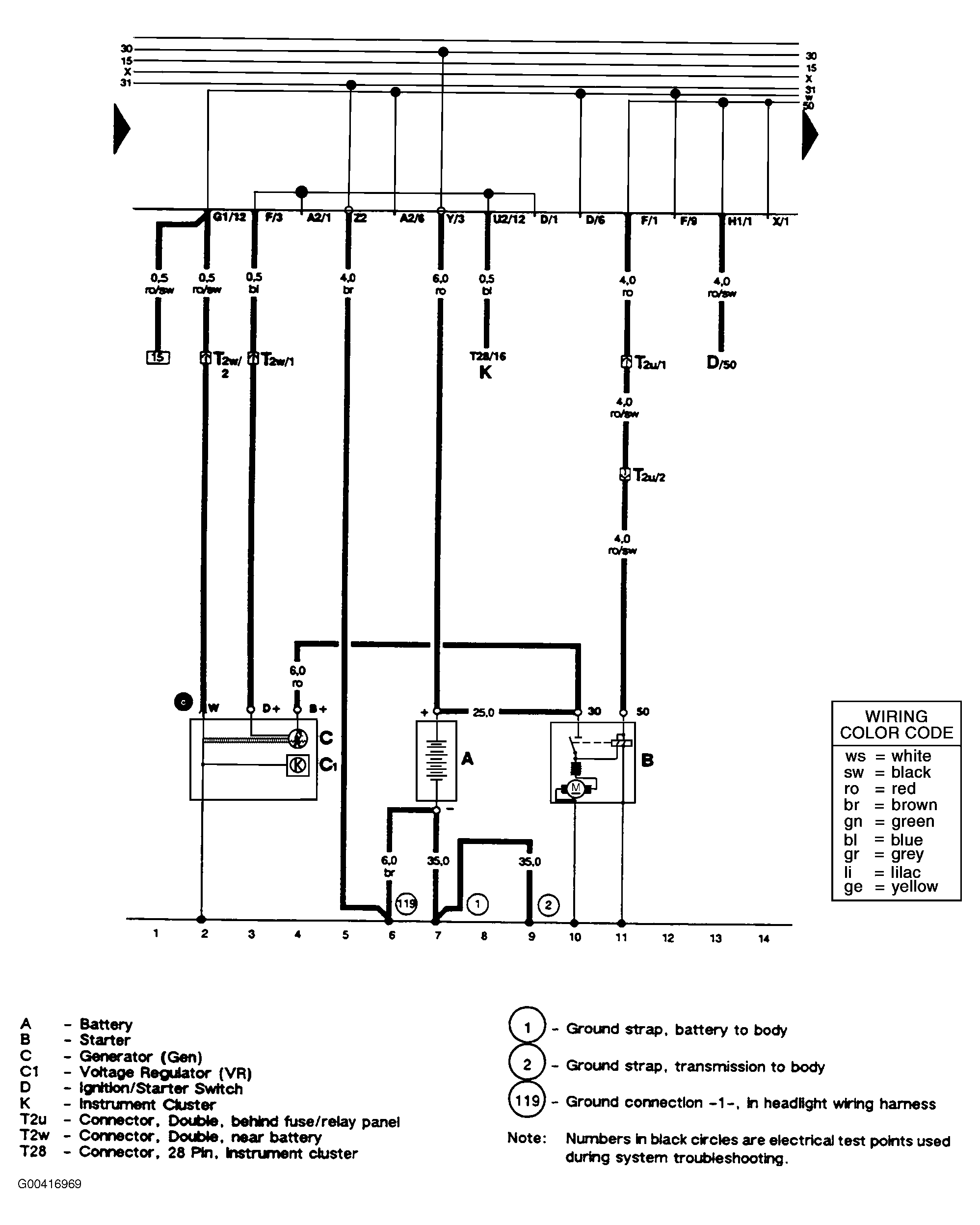

Fig 3: Glow Plug System Wiring Diagram (3 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

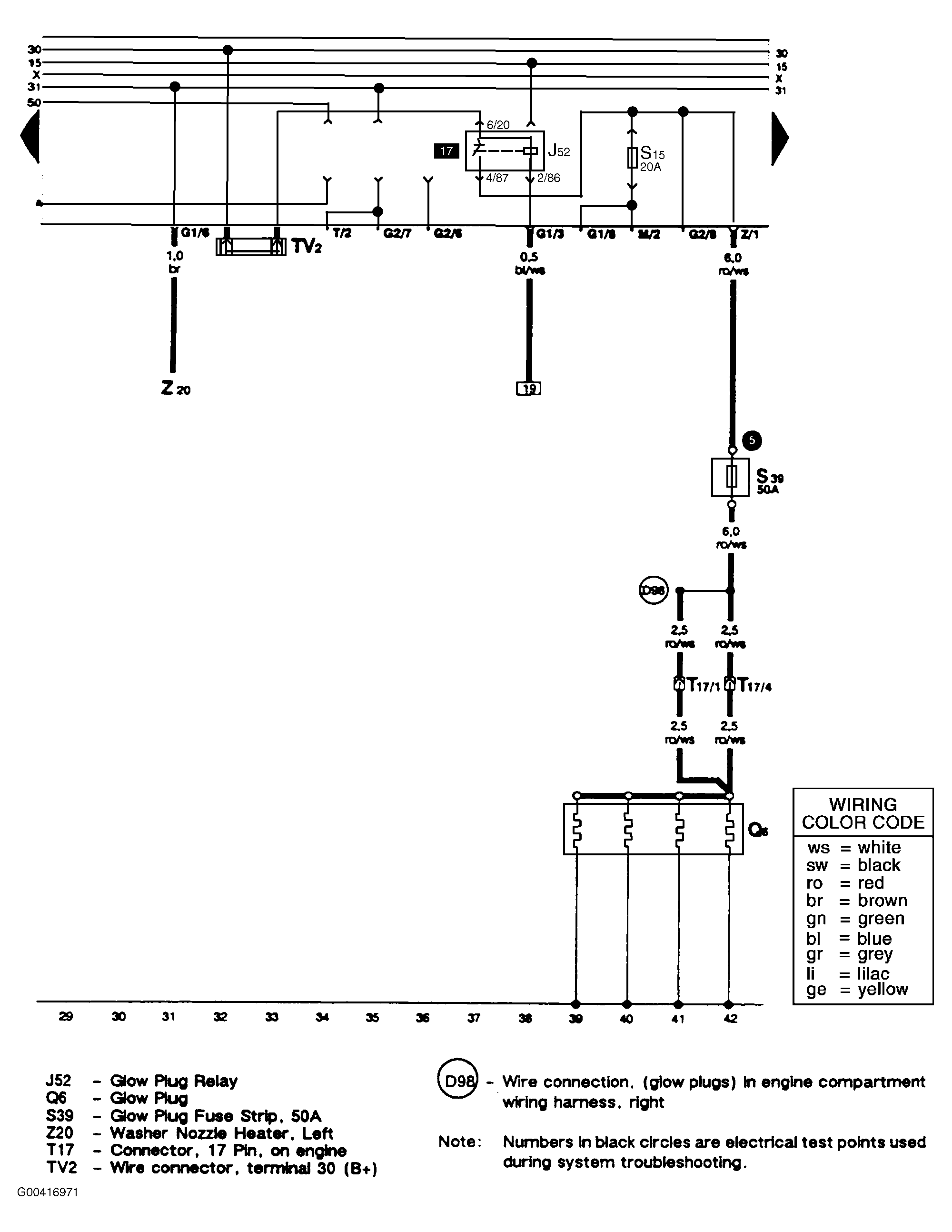

Fig 4: Glow Plug System Wiring Diagram (4 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
