Glow Plug System Troubleshooting

WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

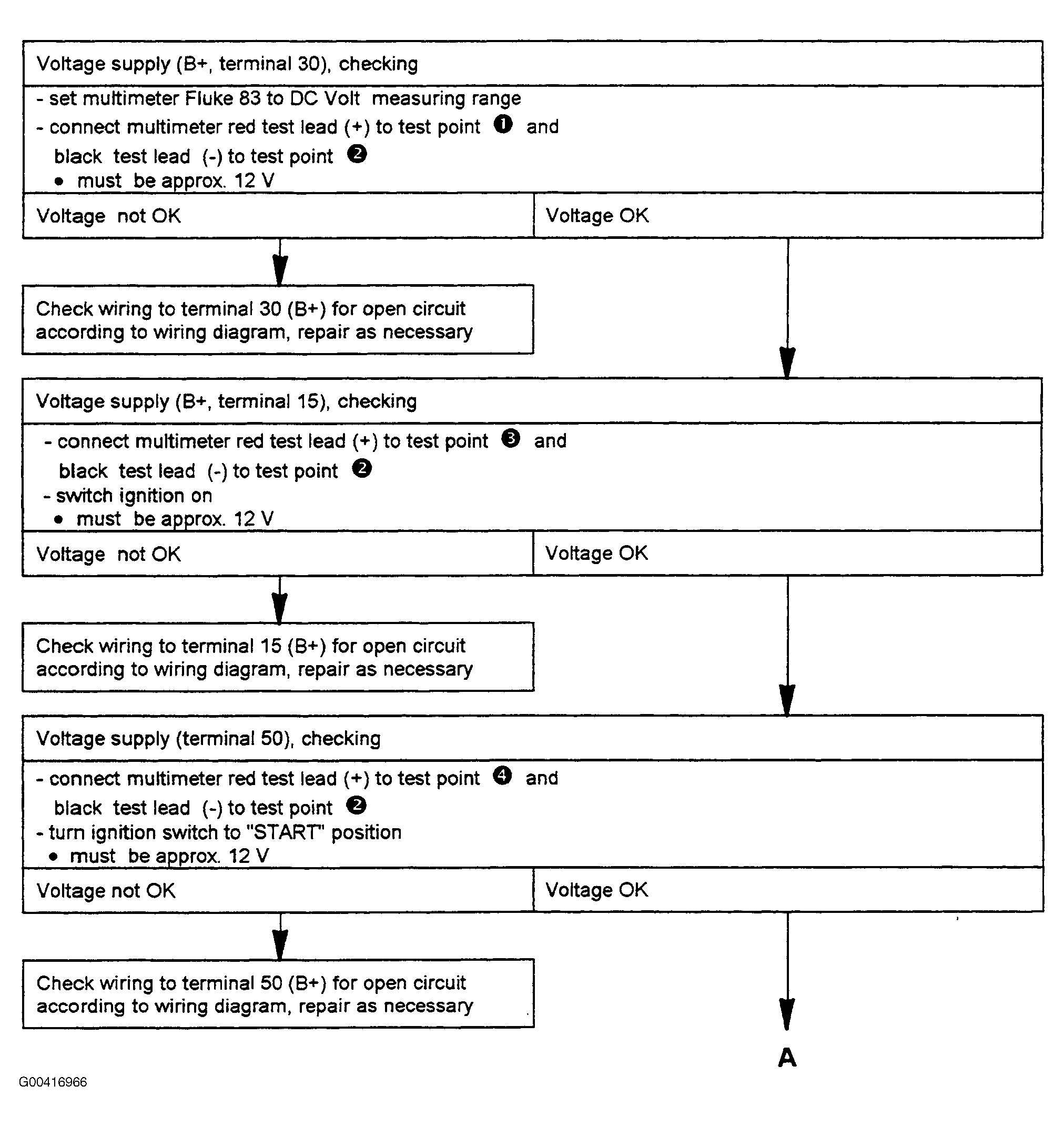

Fig 1: Glow Plug System Troubleshooting (1 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

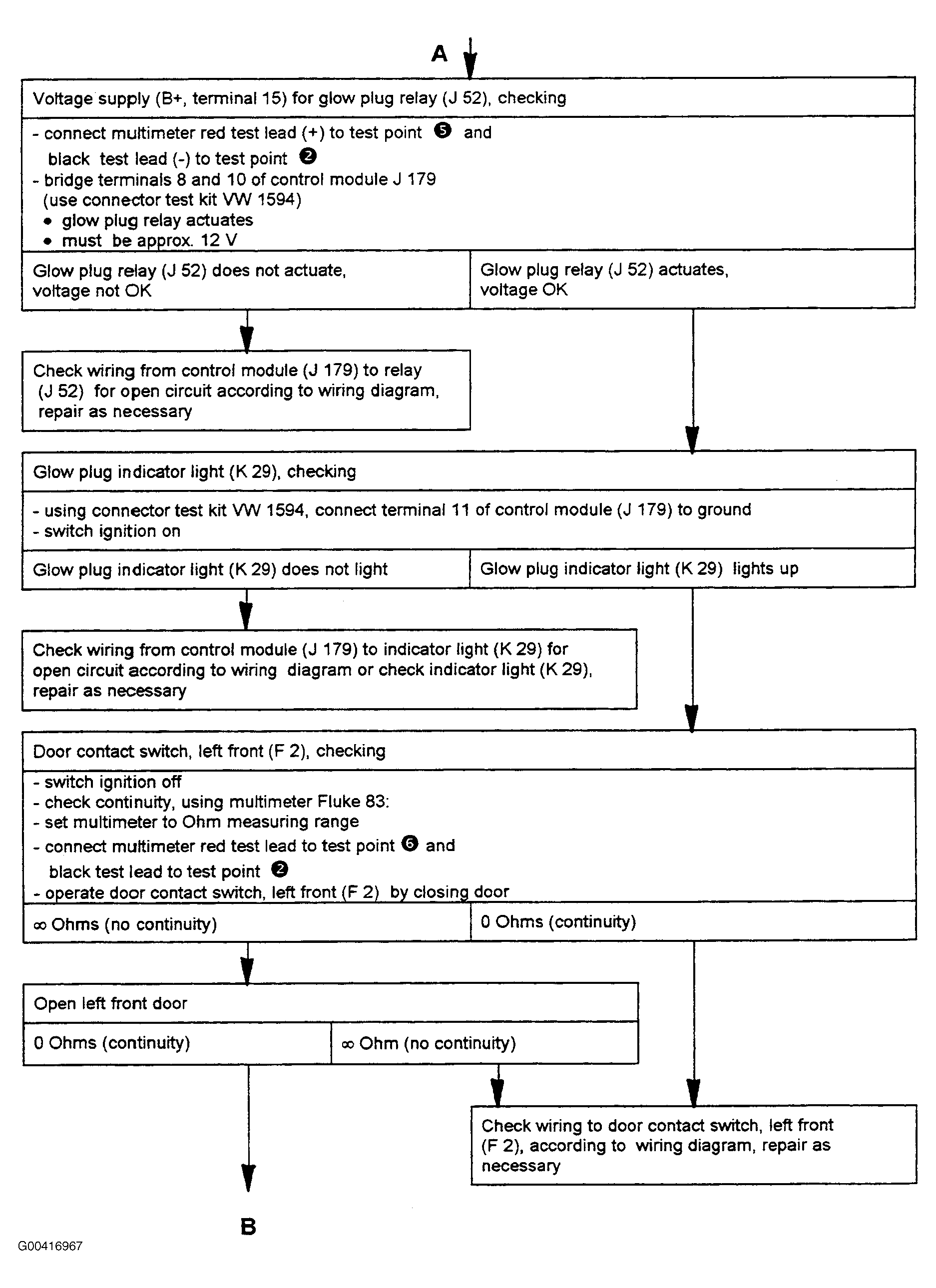

Fig 2: Glow Plug System Troubleshooting (2 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

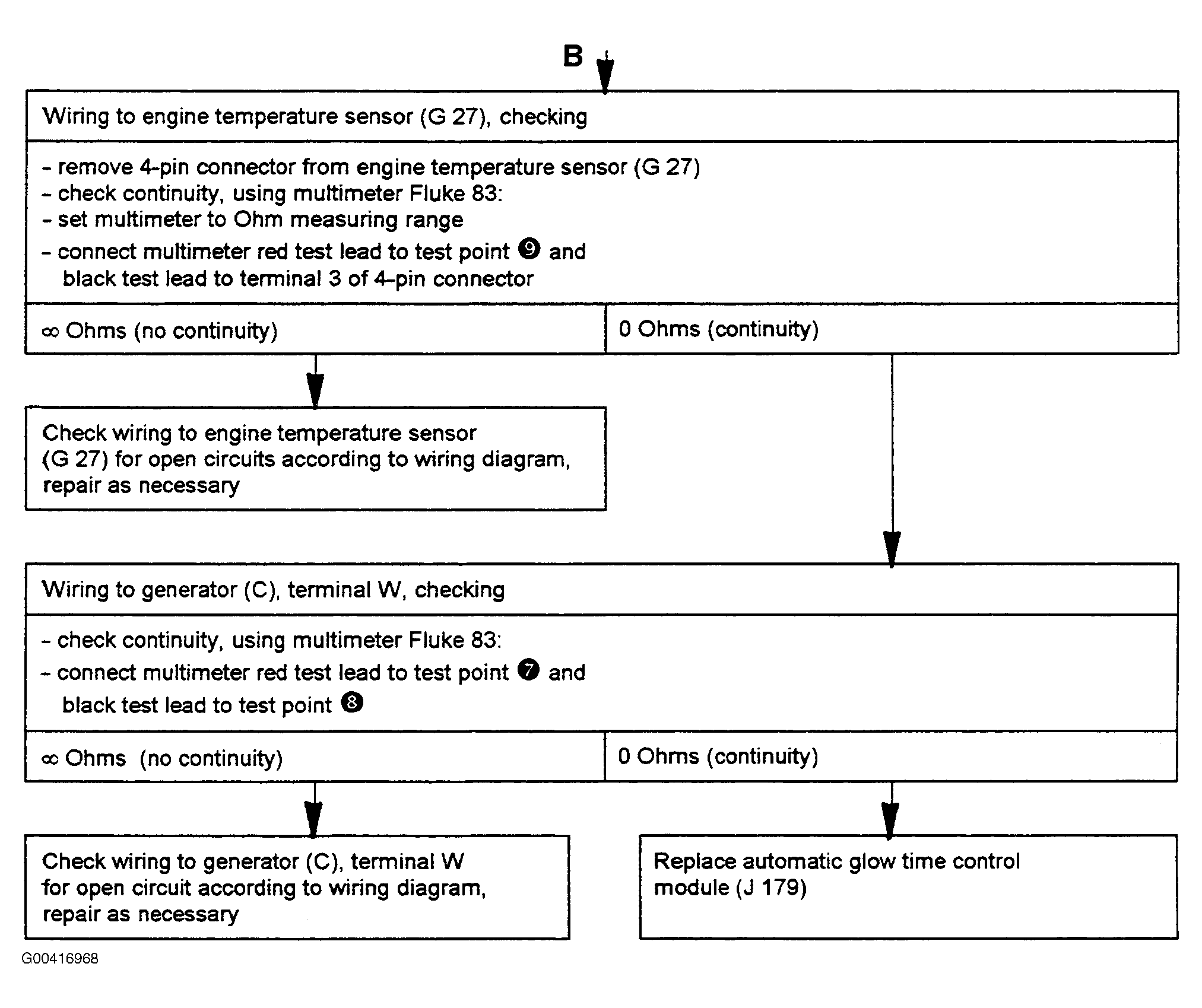

Fig 3: Glow Plug System Troubleshooting (3 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
