Rear brake caliper, servicing: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When repairing, apply a thin coat of brake fluid to cylinders, pistons and seals.
- Install all parts in repair kit.
- Before installing caliper it must be filled with brake fluid and pre-bleed, see INSTALLING .
- New calipers are supplied filled with brake fluid and pre-bled.

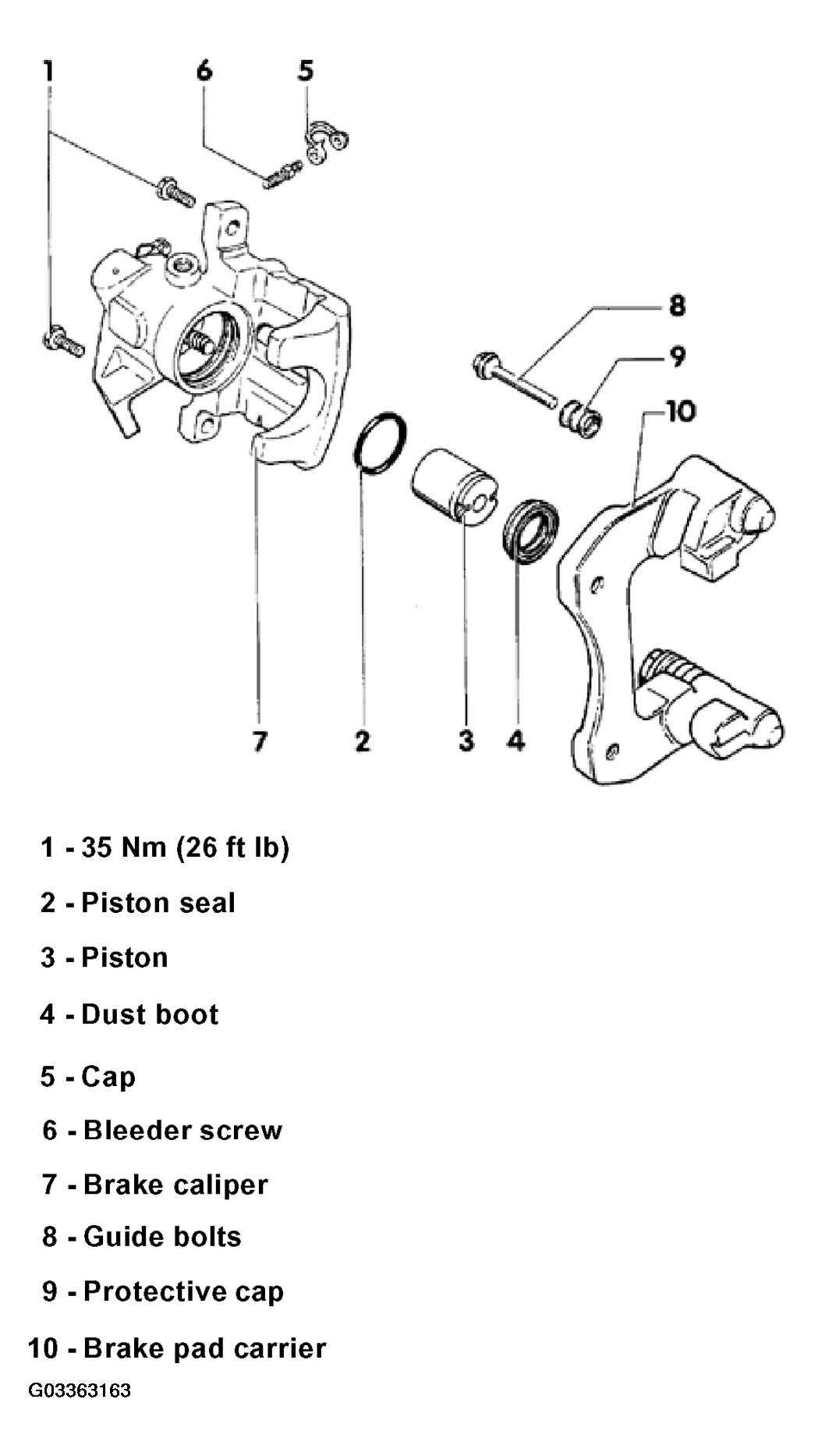

The following list pertains to Fig 1.
- 35 N.m (26 ft lb)
- Always replace
- Hold guide bolts while loosening and tightening
- Piston seal
- Removing, see REAR BRAKE CALIPER PISTON, REMOVING AND INSTALLING
- Piston
- Removing, see REAR BRAKE CALIPER PISTON, REMOVING AND INSTALLING
- Dust boot
- Pull outer sealing lip onto piston
- Cap
- Bleeder screw
- Before tightening lubricate threads lightly with brake fluid
- Brake caliper
- Replace if leaking fluid at parking brake lever
- Fill with fluid and pre-bleed before installing
- Guide bolts
- Lubricate with grease before installing protective cap
- Protective cap
- Install on guide bolts and brake pad carrier
- Brake pad carrier
- Supplied as replacement part with pre -lubricated guide bolts and protective caps
- If protective caps or guide bolts are damaged install repair kit and use grease pack supplied to lubricate guide bolts
