Front brake caliper (VW II), servicing: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When assembling, apply a thin coat of brake fluid to cylinders, pistons and seals.
- Install all parts in repair kit.

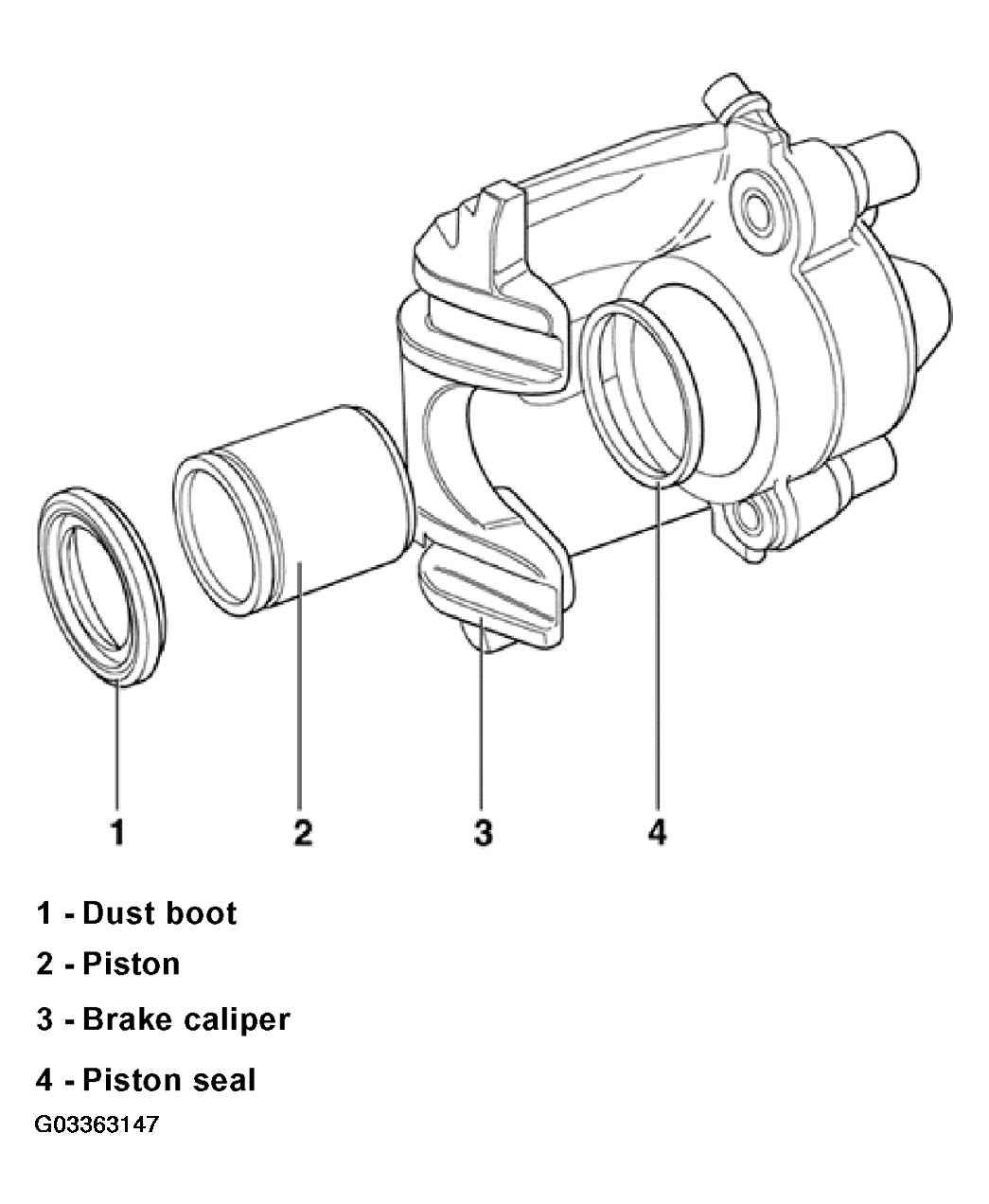

The following list pertains to Fig 1.
- Dust boot
- Do not damage when installing piston
- Piston
- Removing and installing, see FRONT BRAKE CALIPER PISTON (VW II CALIPER), REMOVING AND INSTALLING
- Coat lightly with brake fluid before installing
- Brake caliper
- Piston seal
- Remove using VAG 1474/5, see FRONT BRAKE CALIPER PISTON (VW II CALIPER), REMOVING AND INSTALLING
