Current Draw Suspected

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Test Condition: Battery voltage OK

NOTE:

Use ammeter and/or digital multimeter Fluke 83 (US 1119) for all electrical checks.
Possible causes of battery drain:
1. Corroded and dirty contacts (connectors),
2. Bare wires (stripped insulation),
3. Internal short circuits in components.

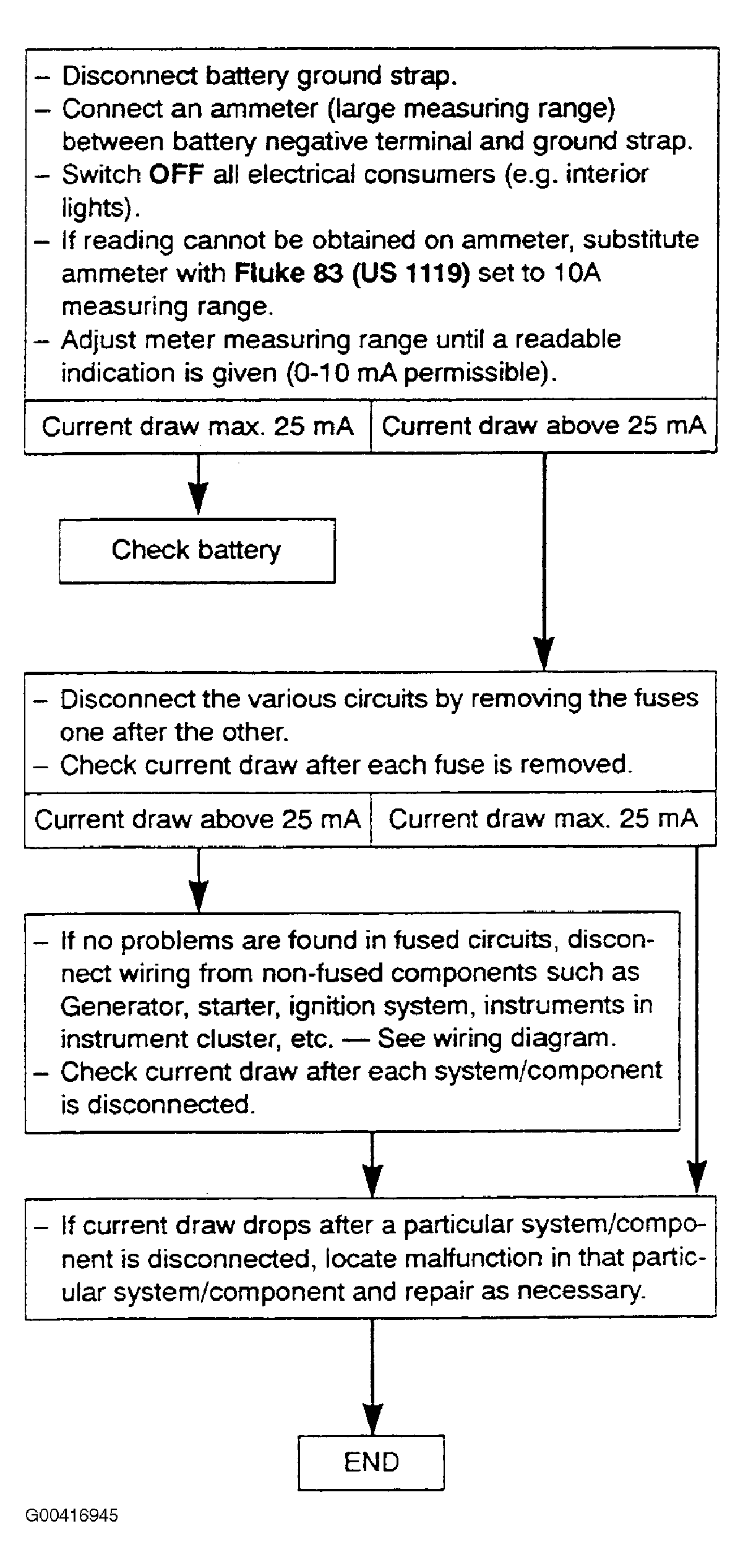

Fig 1: Battery Troubleshooting

Courtesy of VOLKSWAGEN UNITED STATES, INC.
