Work sequence
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

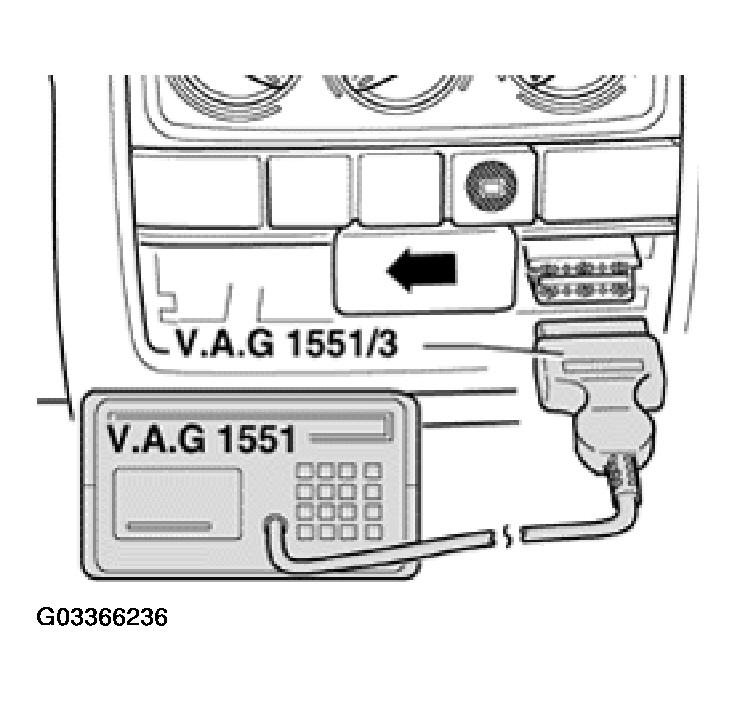

- Open ashtray and remove, then slide cover for diagnostic connections to left (arrow).
- Connect VAG 1551/1552 scan tool with VAG 1551/3 adapter cable.
Depending on desired function:
- Switch ignition on, or start engine.
Operate VAG 1551/1552 scan tool taking into account the information on the display:
