Work step: 7

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Oxygen Sensor (O2S) aging (regulating frequency extended)

Display will appear as shown

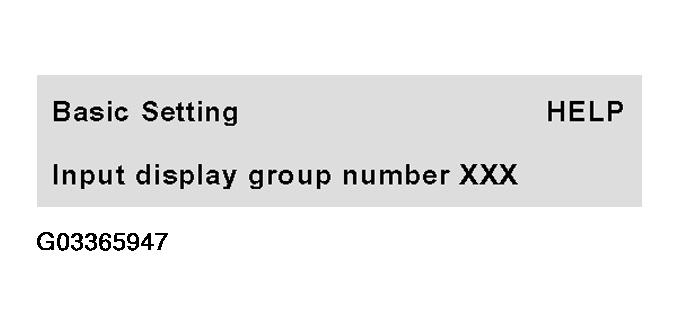

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 7 (1 Of 2)

Press -1-, -3- and -1- buttons to input display group 131.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 7 (2 Of 2)

Run engine at idle and check specifications after 5 seconds.

DISPLAY GROUP: 131, FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 131 Function: 04
Display	xxxx rpm	-	xxxx ms	xxxx xxxx
Indicated	Engine speed	-	HO2S aging	Diagnostic conditions
Specification	800 to 880 rpm -	-	-1200 to 1200 ms Delay time by O2S control	xxxx x100 x = Not relevant
Working range	800 to 6000 rpm	-	-1200 to 1200 ms

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press -C- button.
