Work step: 4

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Engine warm -up

Press -0- and -8- buttons to select "Read Measuring Value Block" function 08.
Press -Q- button to confirm input.

Display will appear as shown

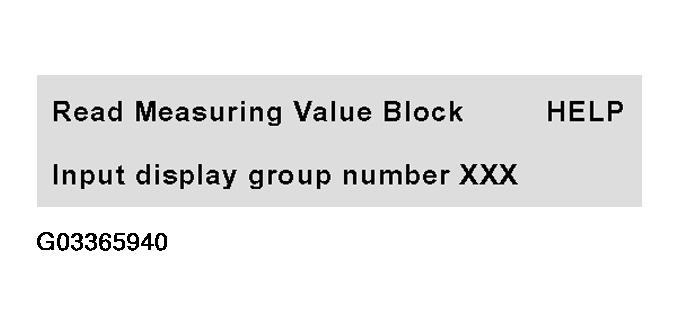

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 4 (1 Of 2)

Press buttons -1-, -0- and -3- to input display group 103.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 4 (2 Of 2)

Increase engine speed to 3000-3500 RPM and check specifications after 60 seconds.

DISPLAY GROUP: 103 FUNCTION: 08

	Display fields
	1	2	3	4
Display group: 103 Function: 08
Display	-	xxx.x °C	xxx.x °C	xxxx xxxx
Indicated	-	Engine coolant temperature	Three way catalytic converter temperature (calculated)	Diagnostic conditions
Specification	-	At least 40 °C	-	xx1x xx00
Working range	-	-46.5° to 141.0 °C	-	x = Not relevant

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
		1						Oxygen Sensor (O2S) control active
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press --> button.
