Work step: 3

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Leak check for EVAP system

NOTE: Not all vehicles have this system installed. If this system is not found on the vehicle you are working with; skip this work step.

Start engine and allow to idle.

Display will appear as shown

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 3 (1 Of 3)

Press buttons -0- and -4- to select "Basic Setting" function 04.
Press -Q- button to confirm input.

Display will appear as shown

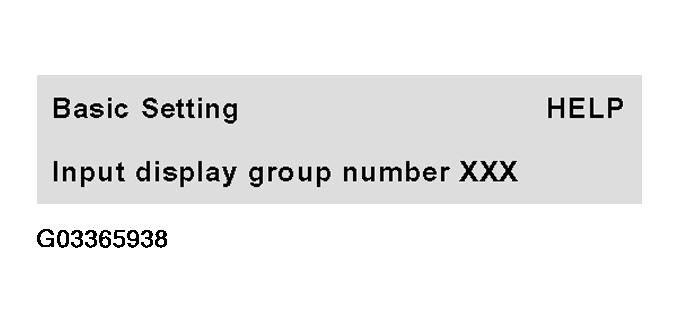

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 3 (2 Of 3)

Press -1-, -5- and -3- buttons to input display group 153.
Press -Q- button to confirm input.

Display will appear as shown (1 -4 = display fields)

Fig 3: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 3 (3 Of 3)

Run engine at idle and check specifications after 60 seconds.

DISPLAY GROUP: 153 FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 153 Function: 04
Display	xxx.x °C	xxx.x °C	xx.x sec.	xxxx xxxx
Indicated	Engine coolant temperature	Intake air temperature	Leak -down pressure/time	Diagnostic conditions. See READINESS CODE, CREATING .
Specification	5° to 94 °C	5° to 45 °C	1.6 sec. min.	x111 x100
Working range	-	-	-	x = Not relevant

Press --> button.
