Work step: 17

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Heated Oxygen Sensor (HO2S) after three way catalytic converter

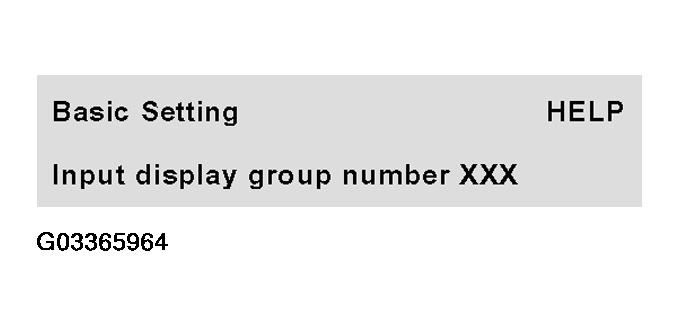

Display will appear as shown

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 17 (1 Of 2)

Press -1-, -1- and -6- buttons to input display group 116.
Press -Q- button to confirm input.

Display will appear as shown (1 -4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 17 (2 Of 2)

Increase engine speed between 2200 and 2800 RPM and check specifications after 15 seconds.

DISPLAY GROUP 116, FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 116 Function: 04
Display	xxxx ms	xxx.x °C	x.xx V	xxxx xxxx
Indicated	Delay time	Three way catalytic converter temperature	HO2S 2 (S2) voltage, O2S switching	Diagnostic conditions
Specific.	Approx. 1200 ms	At least 360 °C -	At least 0.6 V -	1011 x100 x = Not relevant
Working range		0.0 to 999.9 °C	0 to 1.0 V

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
1								Oxygen sensor heating after Three Way Catalytic Converter (TWC) is switched on
	0							HO2S is operationally warm
		1						HO2S after TWC operationally ready
			1					Oxygen sensor control before TWC is active
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press -C- button.
