Work step: 16

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Heated Oxygen Sensor (HO2S) before three way catalytic converter

Display will appear as shown

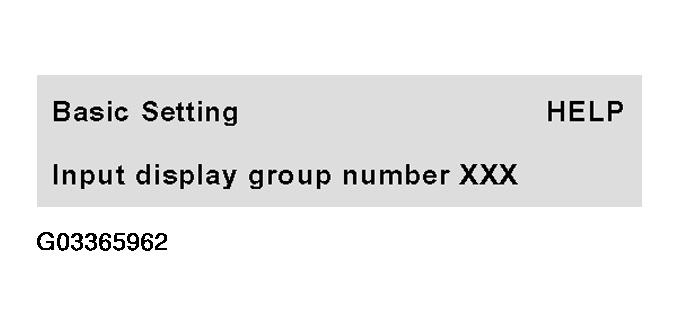

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 16 (1 Of 2)

Press -1-, -1- and -5- buttons to input display group 115.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 16 (2 Of 2)

Increase engine speed between 2200 and 2800 RPM and check specifications.

DISPLAY GROUP 115, FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 115 Function: 04
Display	xxx.x °C	xxx.x °C	x.xx V	xxxx xxxx
Indicated	Engine coolant temperature	Three way catalytic converter (TWC) temperature	HO2S (S1) voltage, O2S switching	Diagnostic conditions
Specific.	At least 60 °C	Approx. 360 °C -	Fluctuating -	1011 x100 x = Not relevant
Working range	-46.5 to 141.0 °C	0.0 to 999.9 °C	0 to 1.0 V

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
1								HO2S before TWC is switched on
	0							HO2S is operationally warm
		1						HO2S before TWC is operationally ready
			1					Oxygen sensor control before TWC is active
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press -3- button (VAG 1551) or up arrow on VAG 1552.
