Work step: 12

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Fuel tank vent system (EVAP canister purge regulator valve)

Vehicle stationary
All electrical consumers switched OFF (coolant fan not running during check)
A/C switched OFF

NOTE: Engine must not be under load during the diagnostic test or sequence will be interrupted and not started again until engine is revved up.

Display will appear as shown

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 12 (1 Of 2)

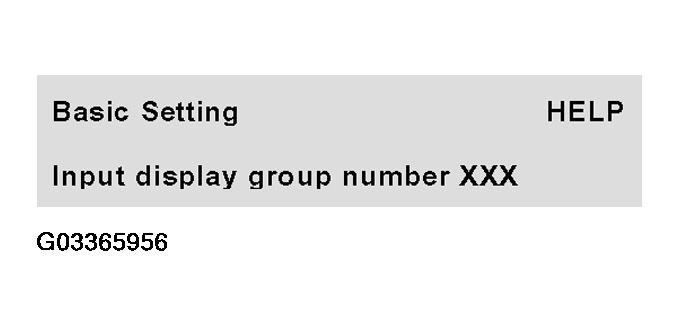

Press -1-, -5- and -0- buttons to input display group 150.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 12 (2 Of 2)

Run engine for 30 seconds at idle and check specifications.

NOTE: For work step 12, look for either display field 2 or display field 3 specification fulfillment, but not both. Fulfillment of either display is acceptable.

DISPLAY GROUP: 150, FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 150 Function: 04
Display	xx %	x.x %	x.xx g/s	xxxx xxxx
Indicated	Opening degrees	Oxygen Sensor (O2S) control	Idling control	Diagnostic conditions
Specification	0 to 100 %	-7.8 to -23 or 7.8 to 23 or at least 0.20 g/s		1110 x100
Specification	Minimum opening of tank vent valve	O2S control deviations during diagnosis	O2S control deviations during diagnosis	x = Not relevant
Working range	0 to 100 %	-25 to 25

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
1								O2S control before three way catalytic converter active
	1							Idling
		1						Starting temperature warmer than -5 °C
			0					Altitude up to max. 2600 m above sea level
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press --> button.
