Work step: 11

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Three Way Catalytic Converter (TWC)

Display will appear as shown

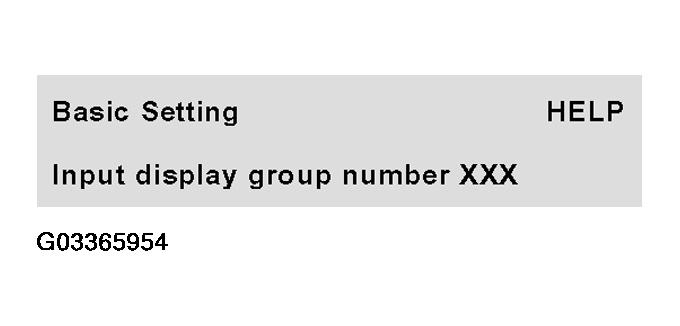

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 11 (1 Of 2)

Press -1-, -3- and -6- buttons to input display group 136.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 11 (2 Of 2)

Increase engine speed between 2700 and 3300 RPM, check specifications after 120 seconds.

DISPLAY GROUP: 136 FUNCTION: 04

	Display fields
	1	2	3	4
Display group: 136 Function: 04
Display	xxxx rpm	xxx.x °C	x.xx	xxxx xxxx
Indicated	Engine speed	Three way catalytic converter temperature	Three way catalytic converter efficiency	Diagnostic conditions
Specification	2700 to 3300 rpm	At least 360 °C	0.3 max.	1111 x100 x = Not relevant
Working range	800 to 6000 rpm	0.0 to 999.9 °C

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
1								Oxygen sensor control before TWC active
	1							TWC has its minimum temperature
		1						Load range OK.
			1					Heated oxygen sensor after TWC operationally ready
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press -C- button.
