Work step: 10

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic test: Oxygen Sensor (O2S) aging (regulating frequency extended)

Vehicle stationary
All electrical consumers turned OFF (coolant fan must not run)

Display will appear as shown

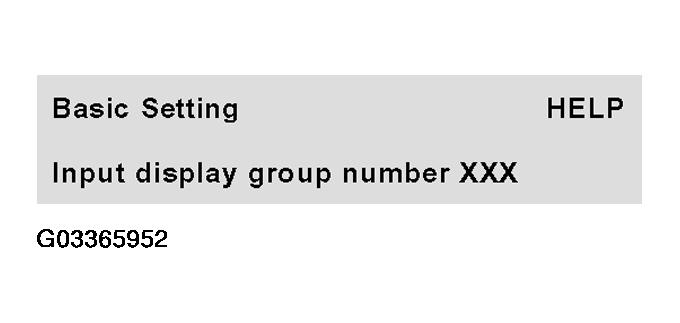

Fig 1: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 10 (1 Of 2)

Press buttons -1-, -3- and -0- to input display group 130.
Press -Q- button to confirm input.

Display will appear as shown (1 to 4 = display fields)

Fig 2: VAG 1551/1552 Scan Tool Display: Readiness Code, Creating, Work Step 10 (2 Of 2)

Raise engine RPM between 2200 and 2800 then check specifications.

DISPLAY GROUP: 130 FUNCTION: 04

Display fields

Display group: 130 Function: 04

Display

xxxx rpm

xx secs

xxxx xxxx

Indicated

Engine speed

Seconds

Period counter

Diagnostic conditions

Specific.

2200 to 2800 rpm

0 to 2.8 secs
O2S control duration (one complete cycle)

6⁽¹⁾
HO2S slopes recognized (requires 4 slopes)

xxxx x100
x = Not relevant

Working range

800 to 6000 rpm

0.00 to 15.00 secs

0 to 4

⁽¹⁾	This display field represents the average of four oxygen sensor cycles from rich to lean; there must be a total of six.

RELEVANCE OF 8 DIGIT NUMBER BLOCK IN DISPLAY FIELD 4

Relevance of 8 digit number block in display field 4
1	2	3	4	5	6	7	8	Specifications of diagnostic conditions
					1			CYCLE Bit = Diagnosis completed
						0		Diagnosis malfunction free
							0	DTC memory malfunction free

Press -C- button.
