Test conditions
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Fuses 15, 18 and 21 OK

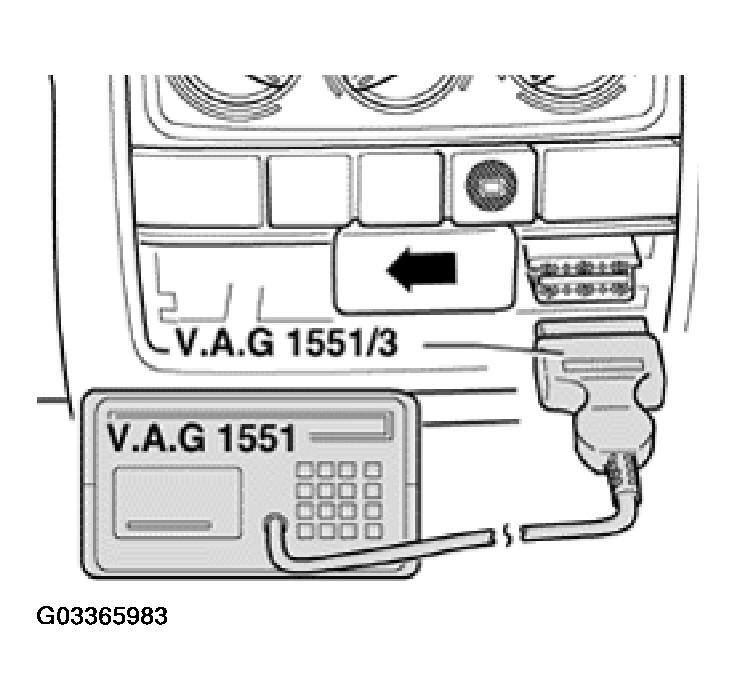

- Open ashtray, remove if necessary and slide cover for diagnostic connections to left (arrow).
- Connect VAG 1551/1552 scan tool with VAG 1551/3 adapter cable.
Depending on desired function:
- Switch ignition on, or start engine.
Operate VAG 1551/1552 scan tool taking into account the information on the display:
