Ignition system components, removing and installing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1.

- Ground strap
- 10 Nm
- Ignition coil -N152-
- Fitting location. See COMPONENT LOCATIONS OVERVIEW , engine compartment overview
- With power output stage - N157-
- Checking. See IGNITION COIL AND POWER OUTPUT STAGE, CHECKING
- Connector
- Black, 3-pin
- H.T. cable
- Resistance 4.8 to 7.2 kΩ
- With suppression connector and spark plug connector
- Rotating latch
- H.T. cable
- Resistance 4.8 to 7.2 kΩ
- With suppression connector and spark plug connector
- Use 3277 when pulling off and pressing on
- Knock sensor 1 -G61-*
- Fitting location. See COMPONENT LOCATIONS OVERVIEW , engine compartment overview
- Checking. See KNOCK SENSOR, CHECKING
- Sensor and connector contacts are gold -plated
- 3-pin connector
- Contacts gold plated
- Blue
- 20 Nm
- Tightening torque influences the function of the knock sensor
- Spark plug, 30 Nm
- Remove and install with spark plug spanner 3122B
- Type and electrode gap. See TECHNICAL DATA, SPARK PLUGS
- 25 Nm
- Clamp
- O-ring
- Replace if damaged
- Distributor with Camshaft Position (CMP) sensor -G40- *
- Installing. See DISTRIBUTOR, INSTALLING
- Checking Camshaft Position (CMP) sensor. See CAMSHAFT POSITION (CMP) SENSOR, CHECKING
- Dust cap
- Rotor arm
- Marking: R1
- 0.6 to 1.4 kΩ
- Distributor cap
- Check for cracks and signs of tracking
- Check contact wear
- Clean before fitting Check carbon brush for wear and freedom of movement
- Screening cap

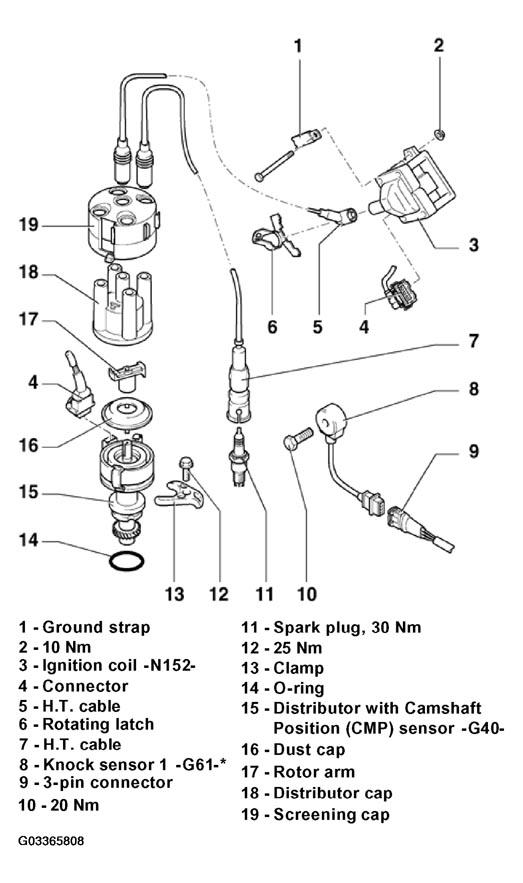

Fig 1: Exploded View Of Ignition System Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.
