Checking No. 1 cylinder TDC markings:

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Set flywheel -A- or drive plate -B- to TDC No. 1 cylinder.

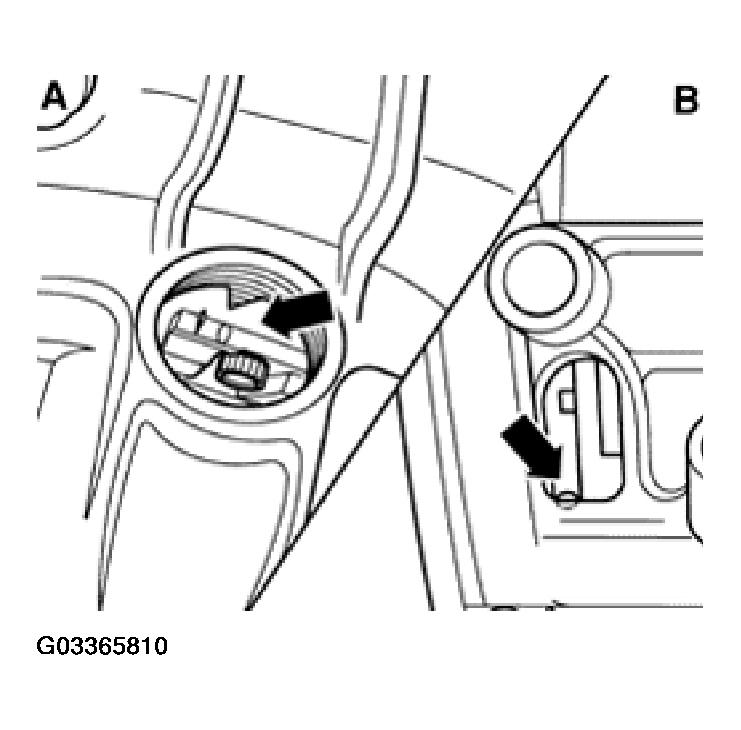

Fig 1: Setting Flywheel Or Drive Plate To TDC No. 1 Cylinder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine removed

Set vibration damper (V -belt pulley) to TDC No. 1 cylinder.

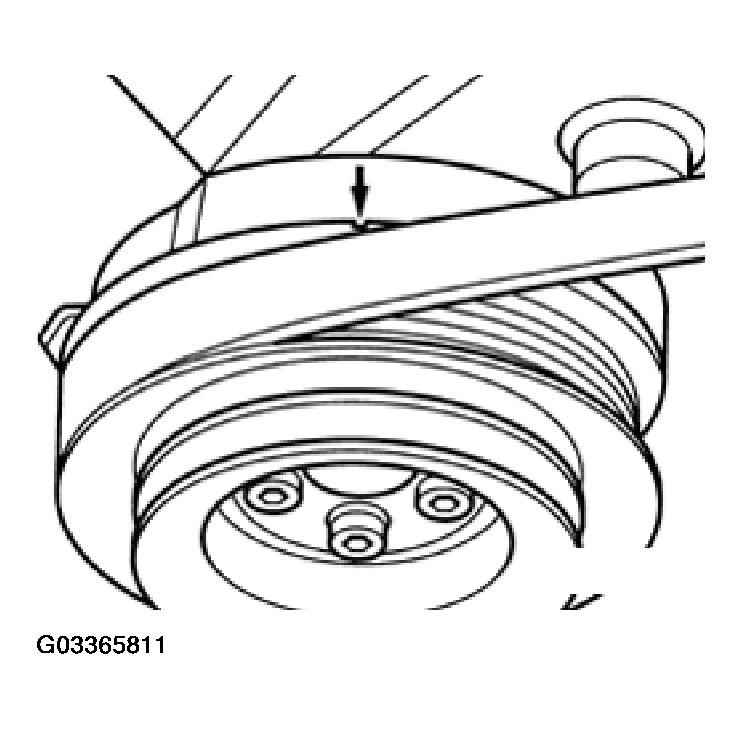

Fig 2: Setting Vibration Damper (V -Belt Pulley) To TDC No. 1 Cylinder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Mark on camshaft sprocket must align with arrow on toothed belt guard.

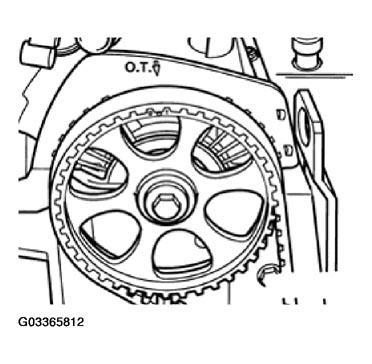

Fig 3: Identifying Mark On Camshaft Sprocket Aligned With Arrow On Toothed Belt Guard

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adjust shaft seating tappet of oil pump parallel to crankshaft.

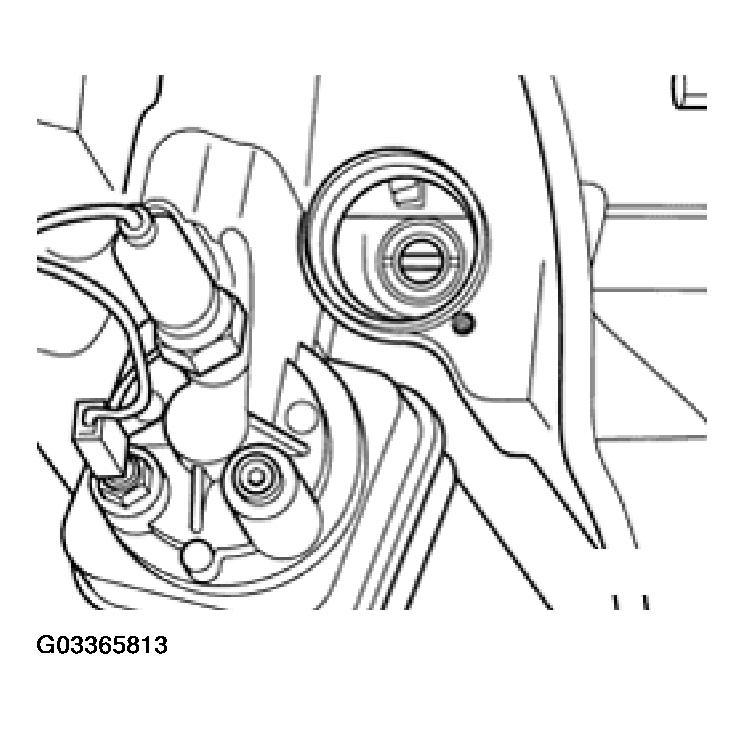

Fig 4: Adjusting Shaft Seating Tappet Of Oil Pump Parallel To Crankshaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When installing, turn rotor arm slightly right of the distributor marking. When inserting the rotor arm will turn back towards the marking.

Insert distributor so that rotor arm points to No. 1 cylinder mark on distributor body.

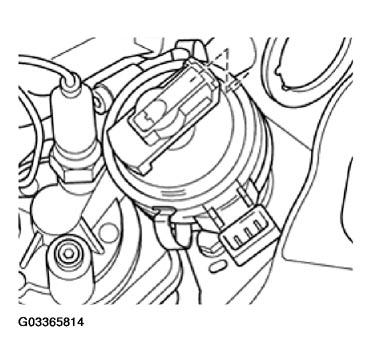

Fig 5: Inserting Distributor So That Rotor Arm Points To No. 1 Cylinder Mark On Distributor Body

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Tighten distributor securing bolt.
Tightening torque: 25 Nm
Before installing, clean distributor cap and check for cracks and signs of tracking, replace if necessary.
- Check basic setting of distributor. See IGNITION TIMING, CHECKING .
