Measuring value blocks, display groups 80 to 100 (readiness code), evaluating: Notes

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

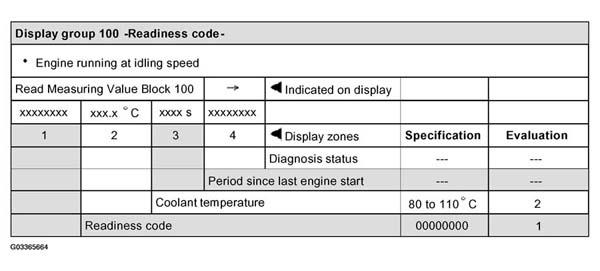

Fig 1: Identifying Display Group 100 - Readiness Code

Courtesy of VOLKSWAGEN OF AMERICA, INC.

For Evaluation 1 in Fig 1, see 8 DIGIT NUMBER BLOCK FOR READINESS CODE SIGNIFICANCE .
For Evaluation 2 in Fig 1, see EVALUATING DISPLAY GROUP 4, DISPLAY ZONE 3 - COOLANT TEMPERATURE .
