Display group 70 -Reducing emissions- EVAP system diagnosis (fuel tank venting system)

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

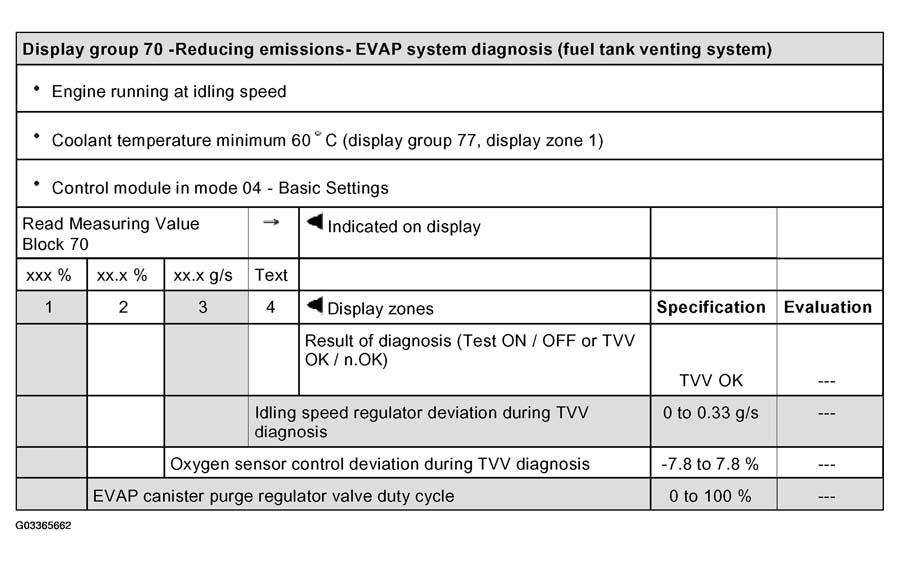

Fig 1: Identifying Display Group 70 - Reducing Emissions (EVAP System Diagnosis)
G03365662Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE: TVV means fuel tank venting valve (EVAP canister purge regulator valve). The diagnosis can only be initiated once per engine start.

Notes on display zone 2:
