Display group 55 -Speed regulation- Idling stabilization

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

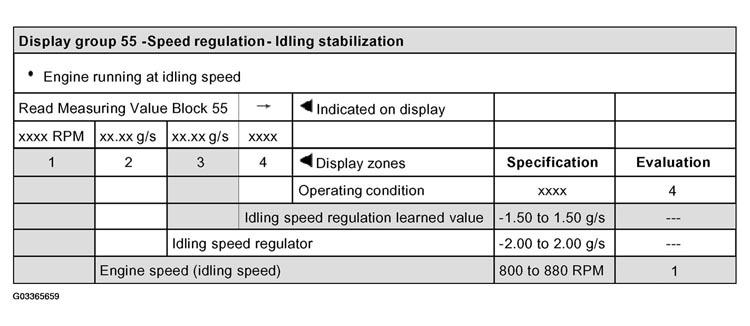

Fig 1: Identifying Display Group 55 - Speed Regulation (Idling Stabilization)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display Group 55 - Speed Regulation (Idling Stabilization)

For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .
For Evaluation 4 in Fig 1, see 4 DIGIT NUMBER BLOCK SIGNIFICANCE .

Note on display zone 3:

Displayed is the amount that the idling speed stabilization has moved away from the prescribed average. For a new engine the values lie in the positive range, because of the higher friction and in the negative range with an engine that has run-in.

Significance of 4 digit number block

4 DIGIT NUMBER BLOCK SIGNIFICANCE

Significance if display = 1
1	2	3	4	Significance
			1	Air conditioner compressor switched -on
		1		Gear engaged
	1			Air conditioner switched -on
1				Not relevant
