Display group 50 -Speed regulation- Operating condition

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

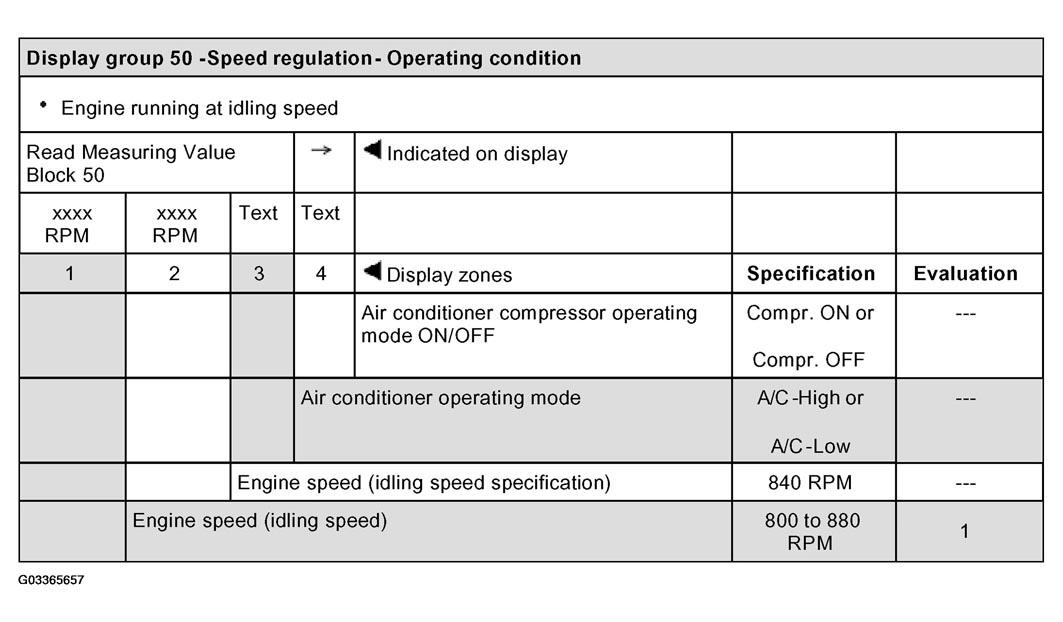

Fig 1: Identifying Display Group 50 - Speed Regulation (Operating Condition)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .

Note on display zone 2:

The specified engine speed from engine control module (calculated in control module) is displayed. In exceptional cases the idling speed can be adapted. See IDLE SPEED CHECKING . The idling speed figures with gear selected are then automatically modified.

Notes on display zone 3:

A/C-High = Air conditioner demands too high a heating or cooling output
A/C-Low = Air conditioner not switched on.

Notes on display zone 4:

"Compr. OFF" is always displayed on vehicles without air conditioner.
Checking signal from and to air conditioner compressor. See SIGNAL FROM/TO AIR CONDITIONING SYSTEM, CHECKING .
