Display group 46 -Oxygen sensor control- Catalyst diagnosis (conversion test)

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

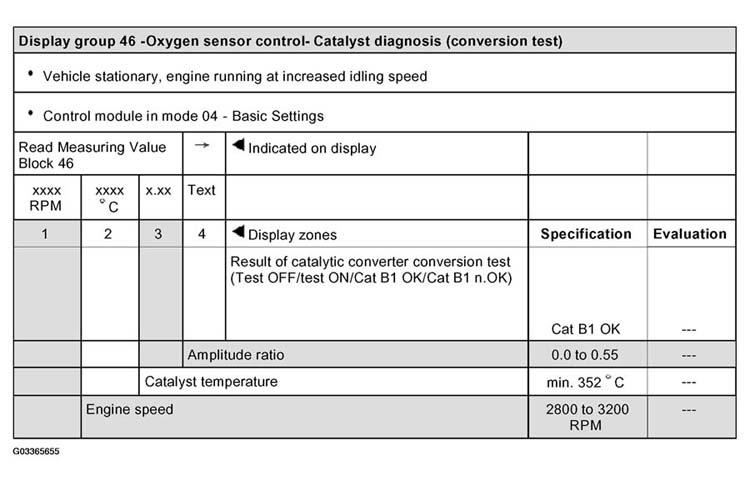

Fig 1: Identifying Display Group 46 - Oxygen Sensor Control (Catalyst Diagnosis)
G03365655Courtesy of VOLKSWAGEN OF AMERICA, INC.
