Display group 41 -Oxygen sensor control- Oxygen sensor heating

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

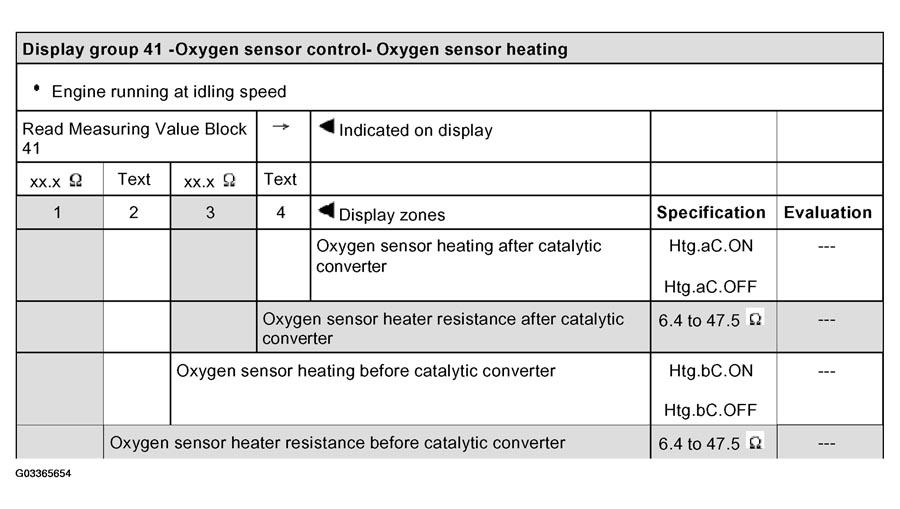

Fig 1: Identifying Display Group 41 - Oxygen Sensor Control (Oxygen Sensor Heating)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: The Oxygen sensor heating may be switched ON or OFF depending on the operating conditions of the engine, therefore the display in display zone 2 or 4 may show "Htg.b(a)C.ON" or alternating from "Htg.b(a)C.ON" to Htg.b(a)C.OFF".
