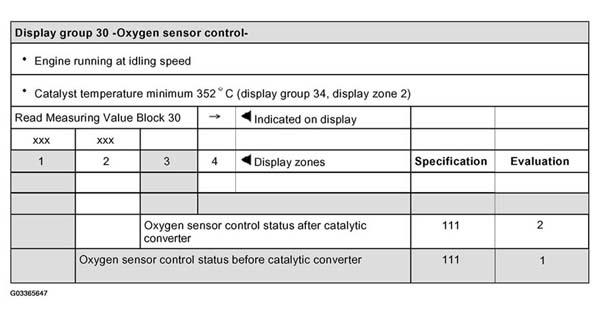

Display group 30 -Oxygen sensor control-
WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
Display Group 30 - Oxygen Sensor Control
- For Evaluation 1 in Fig 1, see 3 DIGIT NUMBER BLOCK SIGNIFICANCE IN DISPLAY ZONES 1 AND 2 .
- For Evaluation 2 in Fig 1, see 3 DIGIT NUMBER BLOCK SIGNIFICANCE IN DISPLAY ZONES 1 AND 2 .
Significance of 3 digit number block in display zones 1 and 2
3 DIGIT NUMBER BLOCK SIGNIFICANCE IN DISPLAY ZONES 1 AND 2
| Significance if display = 1 | |||
|---|---|---|---|
| 1 | 2 | 3 | |
| 1 | Oxygen sensor control active | ||
| 1 | Oxygen sensor operationally ready | ||
| 1 | Oxygen sensor heating on | ||
